FB10S061 Series

Catalog

CONN FPC BOTTOM 61POS 0.3MM R/A

Part	Current Rating (Amps)	Housing Color	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Voltage Rating	Actuator Material	Contact Finish	Cable End Type	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness [custom]	Housing Material	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Flat Flex Type	Contact Material	Locking Feature	Connector/Contact Type	Number of Positions

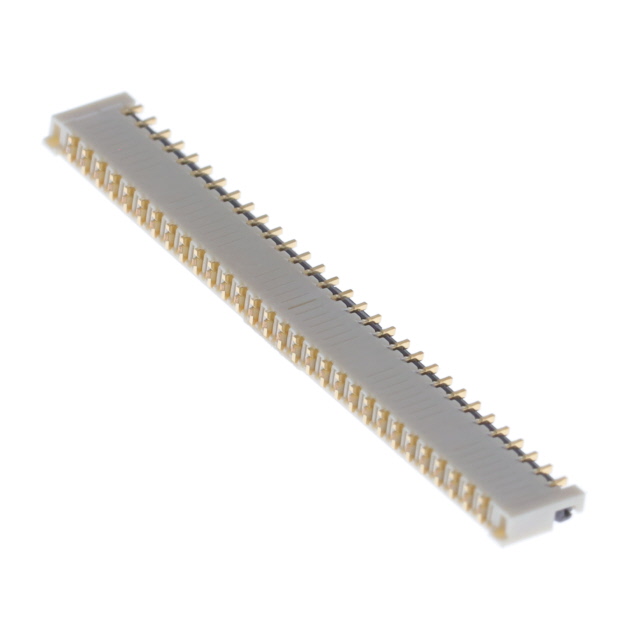

JAE Electronics FB10S061JT1R6000	0.35 A	White	Black	1.25 Áin	0.03 Ám	20	50 V	Plastic	Gold	Tabbed or Tapered	0.88 mm	0.035 in	0.2 mm	Plastic	0.012 in	0.3 mm	85 °C	-40 C	Solder	Right Angle Surface Mount	FPC	Phosphor Bronze	Flip Lock	Contacts Bottom	61
