RLCBSA Series
Manufacturer: Essentra Components
Beta
⌘K

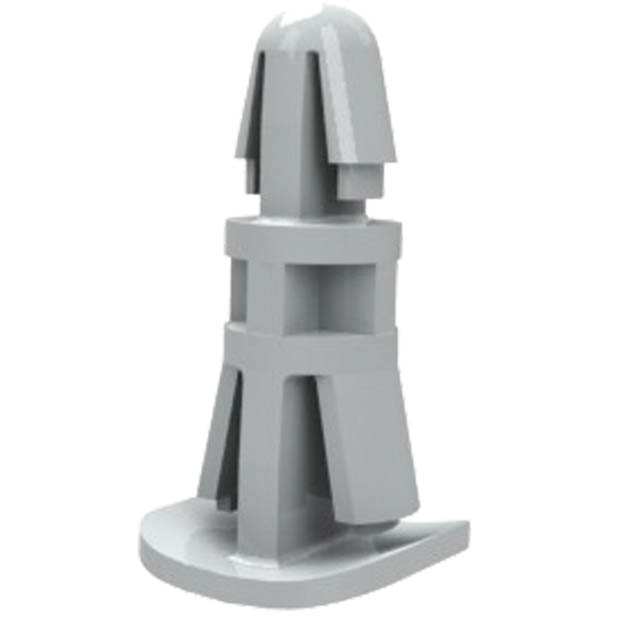

BRD SPT SNAP LOCK NYLON 5MM
| Part | Material | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Type | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Between Board Height | Between Board Height | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Holding Type | Features | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Nylon | 0.039 in | 0.5 mm | 0.02 in | 1 mm | Snap Lock | 1.6 mm | 0.063 in | 5 mm | 0.197 in | 3.99 mm | 0.157 " | 0.217 in | 5.5 mm | Snap Lock | Locking Reverse Mounting | |
Essentra Components | Nylon | 0.039 in | 0.5 mm | 0.02 in | 1 mm | Snap Lock | 1.6 mm | 0.063 in | 8 mm | 3.99 mm | 0.157 " | 0.217 in | 5.5 mm | Snap Lock | Locking Reverse Mounting | 0.315 in | |
Essentra Components | Nylon | 0.039 in | 0.5 mm | 0.02 in | 1 mm | Snap Lock | 1.6 mm | 0.063 in | 12 mm | 3.99 mm | 0.157 " | 0.217 in | 5.5 mm | Snap Lock | Locking Reverse Mounting | 0.472 in |
