G51LFC-P Series
Manufacturer: ODU
Beta
⌘K

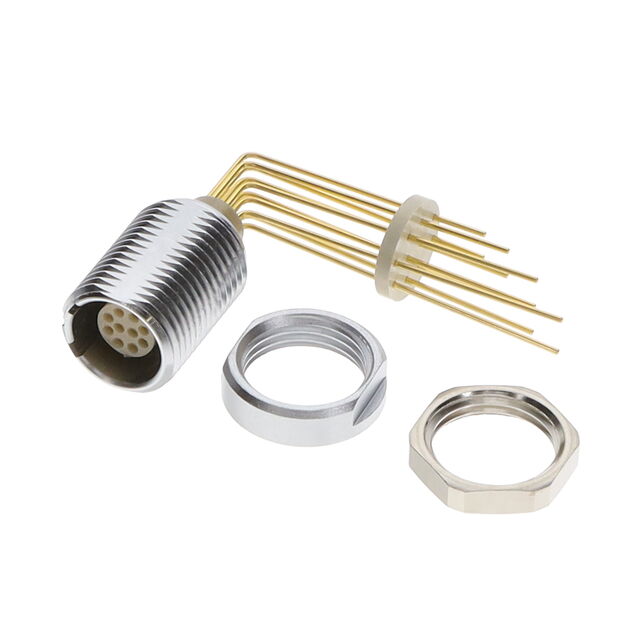

ODU MINI-SNAP RECEPT, STY 5, SZ
| Part | Contact Material | Shell Finish | Connector Type | Applications | Insert Material | Voltage Rating | Shell Size - Insert | Fastening Type | Mounting Type | Features | Shell Material | Mounting Feature | Primary Material | Ingress Protection | Orientation | Number of Positions | Contact Finish - Mating | Shielding | Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Chrome over Nickel | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 333 V | 1 | Push-Pull | Panel Mount | Ground | Brass | Bulkhead - Front or Rear Side Nut | Metal | IP50 - Dust Protected | F | 10 | Gold | Unshielded | Silver | 4 A | 120 °C | -40 C | ||
Brass | Chrome over Nickel | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 333 V | 1 | Push-Pull | Panel Mount Through Hole | Ground | Brass | Bulkhead - Front or Rear Side Nut | Metal | IP50 - Dust Protected | F | 10 | Gold | Unshielded | Silver | 4 A | 120 °C | -40 C | Solder | |
Brass | Chrome over Nickel | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 333 V | 1 | Push-Pull | Panel Mount Through Hole | Ground | Brass | Bulkhead - Front or Rear Side Nut | Metal | IP50 - Dust Protected | F | 10 | Gold | Unshielded | Silver | 4 A | 120 °C | -40 C | Solder | |
Brass | Chrome over Nickel | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 300 VDC | 1 | Push-Pull | Panel Mount | Ground | Brass | Bulkhead - Front or Rear Side Nut | Metal | IP50 - Dust Protected | F | 8 | Gold | Unshielded | Silver | 7.5 A | 120 °C | -40 C | Crimp | |
Brass | Chrome over Nickel | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 450 V | 1 | Push-Pull | Panel Mount Through Hole | Ground | Brass | Bulkhead - Front or Rear Side Nut | Metal | IP50 - Dust Protected | F | 5 | Gold | Unshielded | Silver | 7.5 A | 120 °C | -40 C | Solder |
