2006-130 Series
Manufacturer: WAGO Corporation
Beta
⌘K
DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP
| Part | Material - Insulation | Stripping Length [Max] | Stripping Length [Min] | Color | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Terminal - Width [y] | Type | Number of Levels | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Termination Style | Current - IEC | Current - UL | Voltage - UL | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

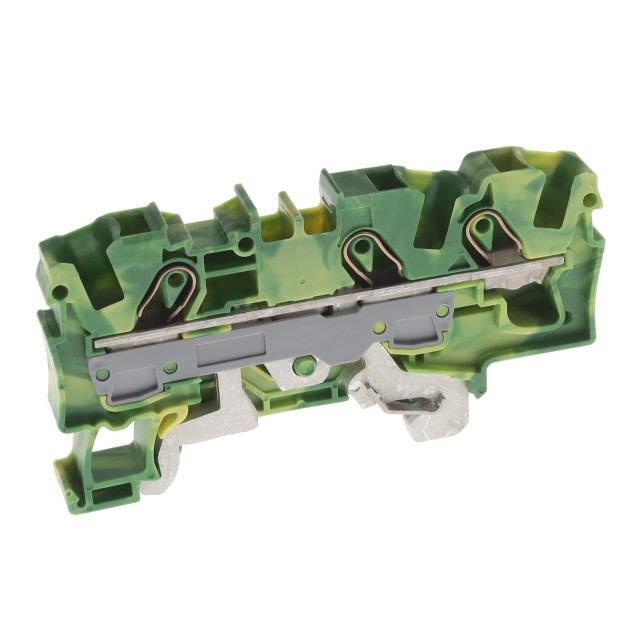

 WAGO Corporation | Nylon 6/6 Polyamide (PA66) | 15 mm | 13 mm | Green Yellow | 10 mm² | 2.5 mm² | 7.5 mm | Ground Earth | 1 | 8 AWG | 14 AWG | Push In Spring | ||||
 WAGO Corporation | Nylon 6/6 Polyamide (PA66) | 15 mm | 13 mm | Gray | 10 mm² | 2.5 mm² | 7.5 mm | Feed Through | 1 | 8 AWG | 14 AWG | Push In Spring | 57 A | 50 A | 600 V | 800 V |
