ATE1D Series

Manufacturer: Nidec Components Corporation

Catalog

TOGGLE SWITCH, SUBMINIATURE, ON-ON, SPDT, NON ILLUMINATED, ATE SERIES, 50 MA, THROUGH HOLE

Part	Electrical Life	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Mounting Type	Circuit	Bushing Thread	Actuator Type	Voltage Rating - DC	Actuator Length [x]	Features

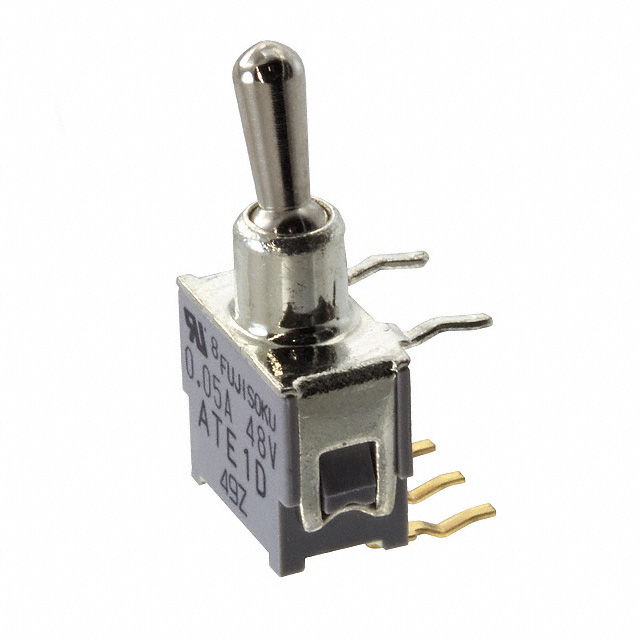

Nidec Components Corporation ATE1D-6M3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole	SPDT	Unthreaded	Standard Round	48 V	6 mm	Washable

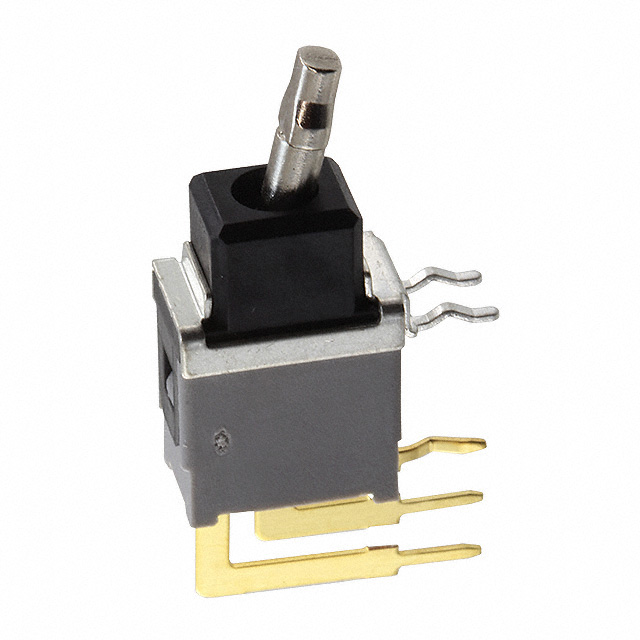

Nidec Components Corporation ATE1D-7J3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole Vertical	SPDT	Unthreaded	Lever for Cap	48 V		Washable

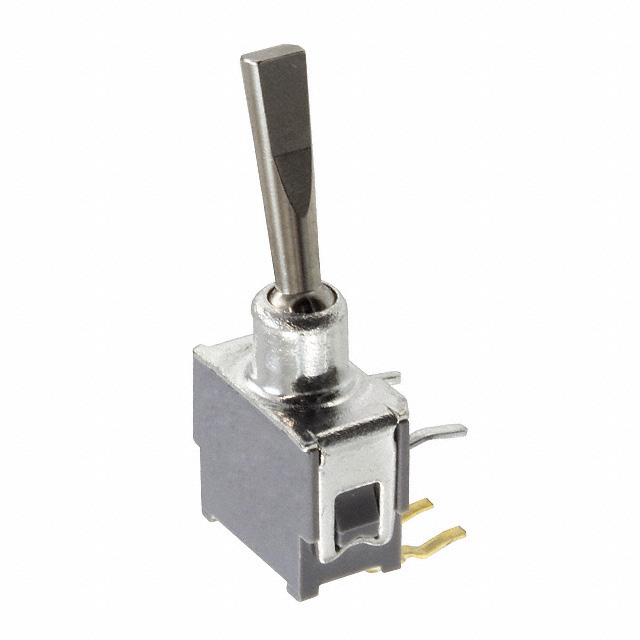

Nidec Components Corporation ATE1D-5F3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole	SPDT	Unthreaded	Flatted	48 V	10 mm	Washable
Nidec Components Corporation ATE1D-5M3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole	SPDT	Unthreaded	Standard Round	48 V	6 mm	Washable

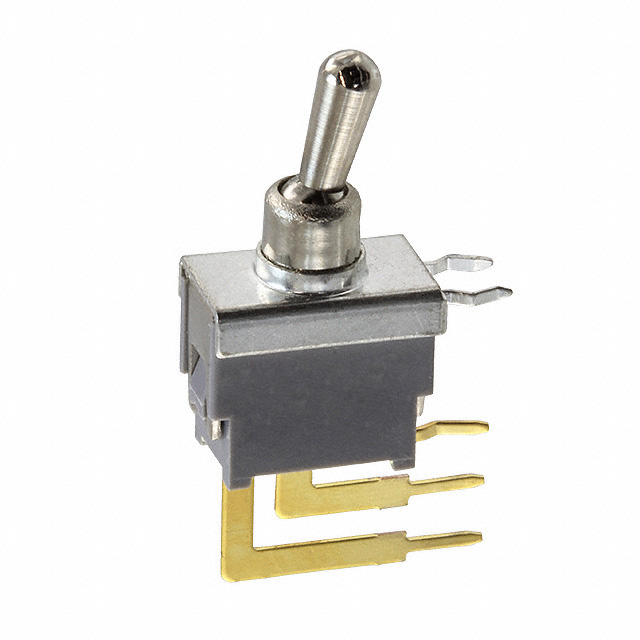

Nidec Components Corporation ATE1D-7M3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole Vertical	SPDT	Unthreaded	Standard Round	48 V	6 mm	Washable

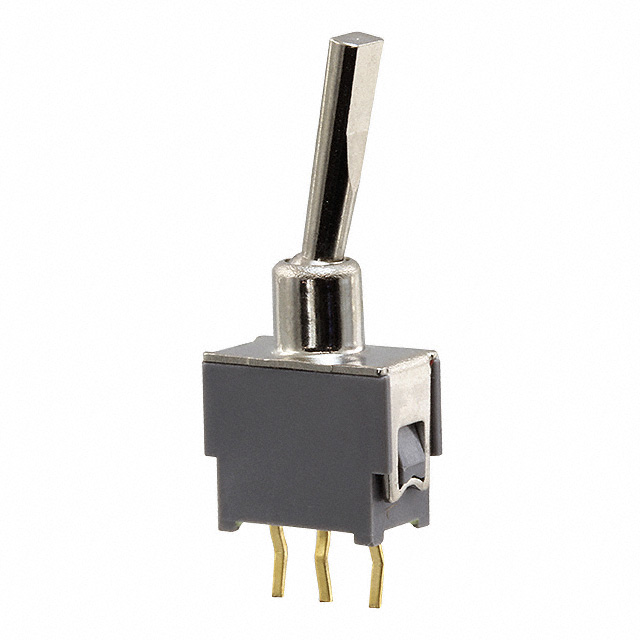

Nidec Components Corporation ATE1D-2F3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Through Hole	SPDT	Unthreaded	Flatted	48 V	10 mm	Washable
Nidec Components Corporation ATE1D-2J3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Through Hole	SPDT	Unthreaded	Lever for Cap	48 V		Washable

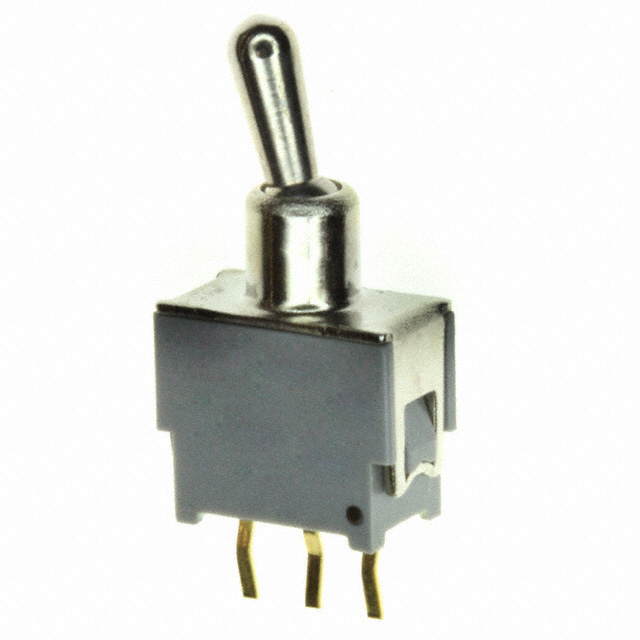

Nidec Components Corporation ATE1D-2M3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Through Hole	SPDT	Unthreaded	Standard Round	48 V	6 mm	Washable

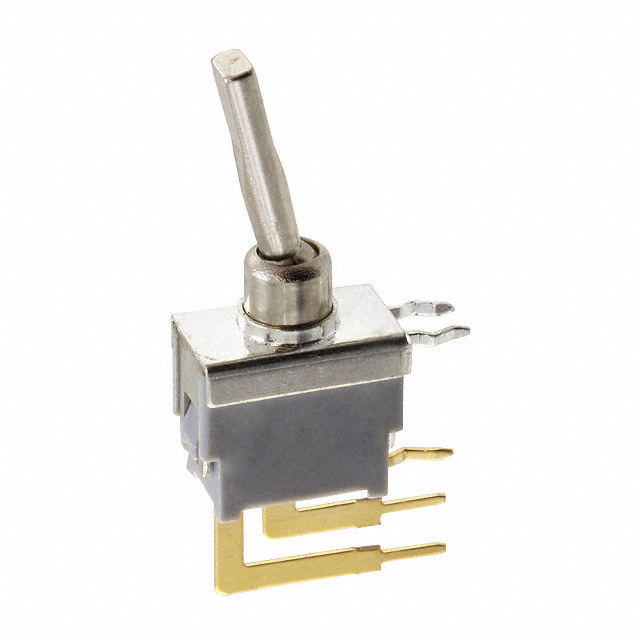

Nidec Components Corporation ATE1D-7F3-10-Z	50000 Cycles	PC Pin	48 V	50 mA	On-On	85 °C	-20 ░C	Non-Illuminated	Right Angle Through Hole Vertical	SPDT	Unthreaded	Flatted	48 V	10 mm	Washable
