2PH1R Series
Manufacturer: Adam Tech
Beta
⌘K

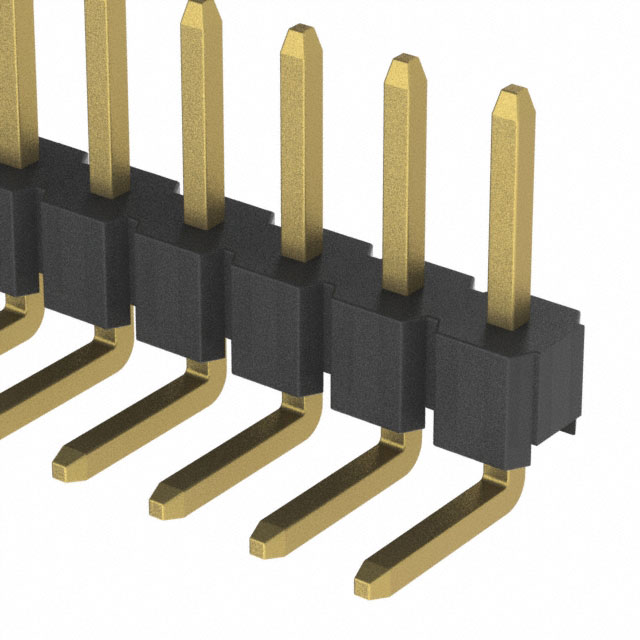

CONN HEADER R/A 10POS 2MM
| Part | Contact Finish Thickness - Post | Insulation Height [z] | Insulation Height [z] | Termination | Number of Positions Loaded | Contact Finish - Post | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [custom] | Contact Length - Post | Material Flammability Rating | Connector Type | Contact Finish - Mating | Contact Type | Voltage Rating | Fastening Type | Insulation Color | Contact Shape | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Pitch - Mating | Pitch - Mating | Shrouding | Number of Rows | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 10 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 11 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 18 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 7 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 6 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 13 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
 Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 4 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 12 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 20 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
 Adam Tech | Flash | 2 mm | 0.079 in | Solder | All | Gold | Right Angle Through Hole | 0.154 in | 3.91 mm | 0.11 in | 2.79 mm | UL94 V-0 | Header | Gold | Male Pin | 250 VAC | Push-Pull | Black | Square | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | 2 | 0.079 " | 2 mm | Unshrouded | 1 | Flash |
