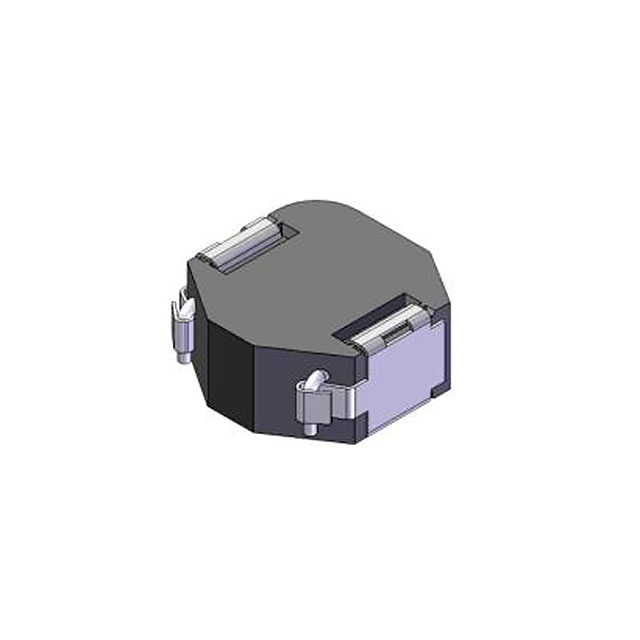

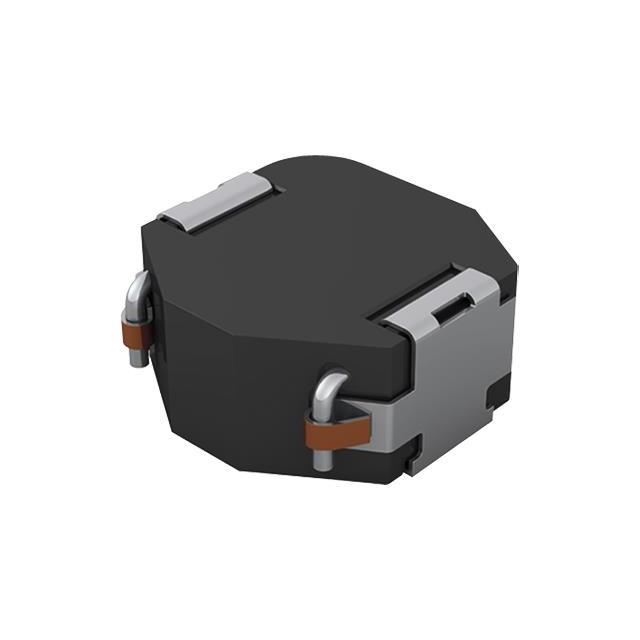

DFEH12060D Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 2.2UH 16A 4.4MOHM SMD
| Part | Mounting Type | Package / Case | Material - Core | Height - Seated (Max) | Height - Seated (Max) [Max] | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Current - Saturation (Isat) | Tolerance | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | DC Resistance (DCR) | Inductance Frequency - Test | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | Surface Mount | Nonstandard | Iron Powder | 6 mm | 0.236 " | Shielded | 13 mm | 12.6 mm | 0.512 " | 0.496 in | AEC-Q200 | 21 A | 20 % | 16 A | -40 C | 155 C | 2.2 µH | 4.4 mOhm | 100 MHz | |
Murata Electronics | Surface Mount | Nonstandard | Iron Powder | 6 mm | 0.236 " | Shielded | 13 mm | 12.6 mm | 0.512 " | 0.496 in | AEC-Q200 | 6.5 A | 20 % | 6 A | -40 C | 155 C | 22 µH | 100 MHz | 35 mOhm | |
Murata Electronics | Surface Mount | Nonstandard | Iron Powder | 6 mm | 0.236 " | Shielded | 13 mm | 12.6 mm | 0.512 " | 0.496 in | AEC-Q200 | 8.8 A | 20 % | 7.9 A | -40 C | 155 C | 10 µH | 100 MHz | 20 mOhm | |
 Murata Electronics | ||||||||||||||||||||
Murata Electronics | Surface Mount | Nonstandard | Iron Powder | 6 mm | 0.236 " | Shielded | 13 mm | 12.6 mm | 0.512 " | 0.496 in | AEC-Q200 | 7.4 A | 20 % | 6.6 A | -40 C | 155 C | 15 µH | 28 mOhm | 100 MHz |
