SDEI054T Series

Catalog

FIXED IND 22UH 2.1A 149MOHM SMD

Part	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Inductance Frequency - Test	Tolerance	Current Rating (Amps)	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shielding	DC Resistance (DCR) [Max]	Package / Case	DC Resistance (DCR)
Delta Electronics/Cyntec SDEI054T-220MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	2.1 A	100 kHz	20 %	2.1 A	22 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	149 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-4R7MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	4.5 A	100 kHz	20 %	3.6 A	4.7 ÁH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	34 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-1R5MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	8 A	100 kHz	20 %	5.5 Amps	1.5 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	16 mOhm	Nonstandard

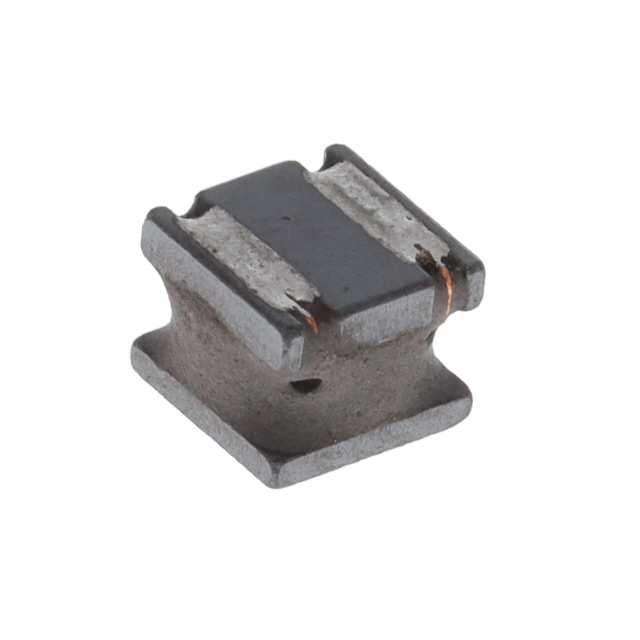

Delta Electronics/Cyntec SDEI054T-330MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	1.75 A	100 kHz	20 %	1.5 A	33 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded		Nonstandard	211 mOhm
Delta Electronics/Cyntec SDEI054T-1R0MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	9.4 A	100 kHz	20 %	6.85 A	1 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	11 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-101MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	900 mA	100 kHz	20 %	900 mA	100 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded		Nonstandard	589 mOhm

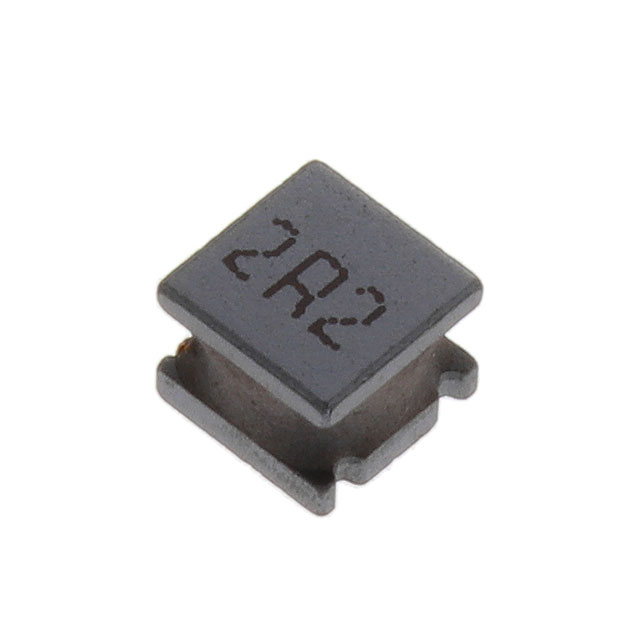

Delta Electronics/Cyntec SDEI054T-2R2MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	6.7 A	100 kHz	20 %	5.4 A	2.2 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded		Nonstandard	17.5 mOhm
Delta Electronics/Cyntec SDEI054T-100MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	3.2 A	100 kHz	20 %	3.1 A	10 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded		Nonstandard	63 mOhm
Delta Electronics/Cyntec SDEI054T-470MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	1.44 A	100 kHz	20 %	1.35 A	47 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	294 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-6R8MS	Surface Mount	4 mm	0.157 in	125 °C	-40 C	4.1 A	100 kHz	20 %	3.15 A	6.8 µH	4.9 mm	4.9 mm	0.193 in	0.193 in	Shielded	50 mOhm	Nonstandard
