MWSD1005C0 Series

Catalog

FIXED IND 0.8NH 1A 35 MOHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Inductance Frequency - Test	Inductance	Shielding	Current Rating (Amps)	Q @ Freq	Type	Mounting Type	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Frequency - Self Resonant
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C0N8BT	125 °C	-40 C	0.1 nH	0402 (1005 Metric)	250 MHz	0.8 nH	Unshielded	1 A	14 250 MHz	Drum Core Wirewound	Surface Mount	0402	0.026 in	0.65 mm	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	35 mOhm	6 GHz
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C0N8CT	125 °C	-40 C	0.2 nH	0402 (1005 Metric)	250 MHz	0.8 nH	Unshielded	1 A	14 250 MHz	Drum Core Wirewound	Surface Mount	0402	0.026 in	0.65 mm	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	35 mOhm	6 GHz

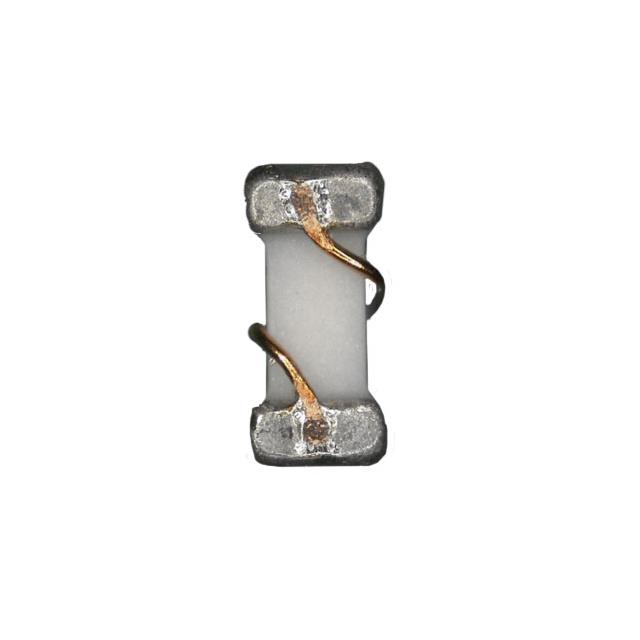

Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C0N8ST	125 °C	-40 C	0.3 nH	0402 (1005 Metric)	250 MHz	0.8 nH	Unshielded	1 A	14 250 MHz	Drum Core Wirewound	Surface Mount	0402	0.026 in	0.65 mm	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	35 mOhm	6 GHz
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C0N8DT	125 °C	-40 C	0.5 nH	0402 (1005 Metric)	250 MHz	0.8 nH	Unshielded	1 A	14 250 MHz	Drum Core Wirewound	Surface Mount	0402	0.026 in	0.65 mm	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	35 mOhm	6 GHz
