LS1048 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

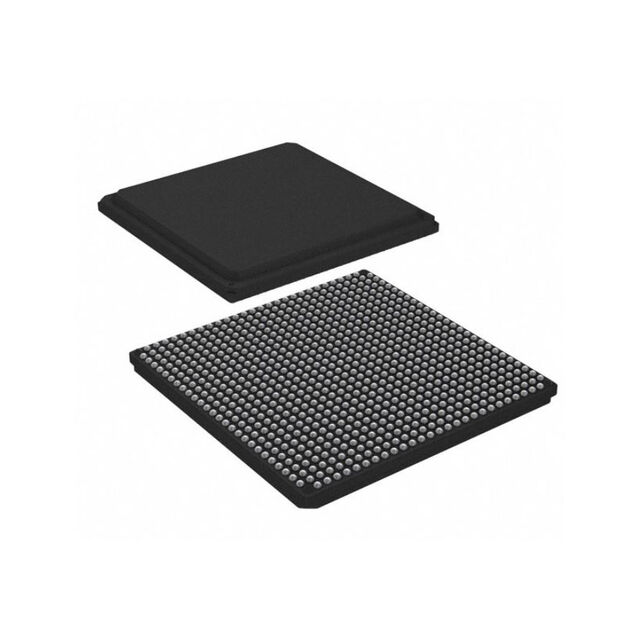

IC MPU QORIQ 1.2GHZ 780FBGA

Part	USB	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	RAM Controllers	SATA	Core Processor	Speed	Security Features	Supplier Device Package	Ethernet
Freescale Semiconductor - NXP LS1048AXN7MQA	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	-40 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.2 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048AXE7MQA	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	-40 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.2 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048AXN7PTA	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	-40 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.4 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048ASN7Q1A	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	0 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.6 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048ASE7PTA	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	0 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.4 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048AXE7Q1A	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	-40 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.6 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
Freescale Semiconductor - NXP LS1048ASE7MQA	USB 3.0 (2) + PHY	64 Bit	4	Surface Mount	0 °C	105 ░C	DDR4	SATA 6Gbps (1)	ARM® Cortex®-A53	1.2 GHz	Secure Boot TrustZone®	780-FBGA (23x23)	10GbE (2) 1GbE (8)
