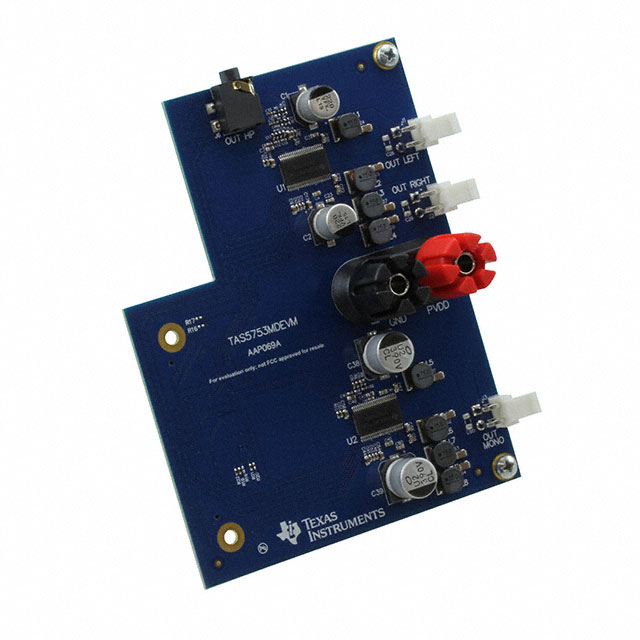

TAS5753MD Series
20-W stereo, 39-W mono, 4.5-to 26.4-V, digital input open loop Class-D audio amplifier w/ AGL & HP
Manufacturer: Texas Instruments
Catalog
20-W stereo, 39-W mono, 4.5-to 26.4-V, digital input open loop Class-D audio amplifier w/ AGL & HP
Key Features
• Audio Input/OutputSupports BTL Configuration With 4-Ω LoadOne Stereo Serial Audio InputI2C Address Selection PinSupports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I2S)Headphone Amplifier and Line DriverIndependent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB StepsProgrammable Three-Band Automatic Gain Limiting (AGL)20 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesGeneral FeaturesI2C Serial Control Interface Operational Without MCLKAutomatic Rate DetectionThermal, Short-Circuit, and Undervoltage Protection105-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)Up to 90% EfficientAD, BD, and Ternary ModulationPWM Level MeterOperates from 4.5-V to 24-V PVDDAudio Input/OutputSupports BTL Configuration With 4-Ω LoadOne Stereo Serial Audio InputI2C Address Selection PinSupports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I2S)Headphone Amplifier and Line DriverIndependent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB StepsProgrammable Three-Band Automatic Gain Limiting (AGL)20 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesGeneral FeaturesI2C Serial Control Interface Operational Without MCLKAutomatic Rate DetectionThermal, Short-Circuit, and Undervoltage Protection105-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)Up to 90% EfficientAD, BD, and Ternary ModulationPWM Level MeterOperates from 4.5-V to 24-V PVDD
Description
AI
The TAS5753MD device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5753MD device is a slave-only device receiving all clocks from external sources. The TAS5753MD device operates with a PWM carrier between a 384-kHz switching rate and a 288-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The device has an integrated Directpath™ Headphone amplifier and linedriver to increase the system-level integration and reduce total solution costs.
The TAS5753MD device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5753MD device is a slave-only device receiving all clocks from external sources. The TAS5753MD device operates with a PWM carrier between a 384-kHz switching rate and a 288-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The device has an integrated Directpath™ Headphone amplifier and linedriver to increase the system-level integration and reduce total solution costs.
