GSF1 Series

Catalog

AC POWER ENTRY MODULES GSF1 PWR ENTRY MODUL 10A

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Features	Connector Type	Ingress Protection	Material Flammability Rating	Connector Style	Voltage Rating - Appliance Inlet	Termination	Approval Agency	Mounting Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness
SCHURTER Inc. GSF1.1002.01	22.3 mm	30.3 mm	Unfiltered - Commercial	Mounting Hardware	Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC	Solder	CCC CSA ENEC UL	Panel Mount Flange Through Hole Right Angle	Fuse Holder	10 A	0.236 "	6 mm

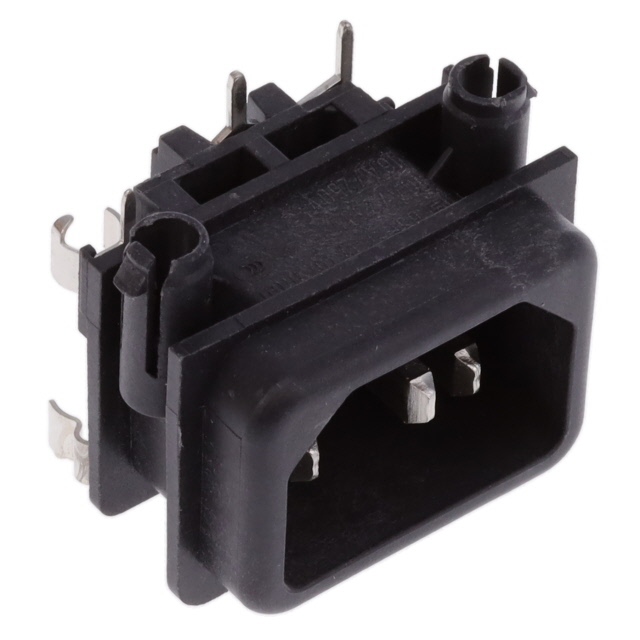

SCHURTER Inc. GSF1.1202.01	22.3 mm	30.3 mm	Unfiltered - Commercial		Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC	Solder	CCC CSA ENEC UL	Panel Mount Right Angle Snap-In Through Hole	Fuse Holder	10 A	0.236 "	6 mm

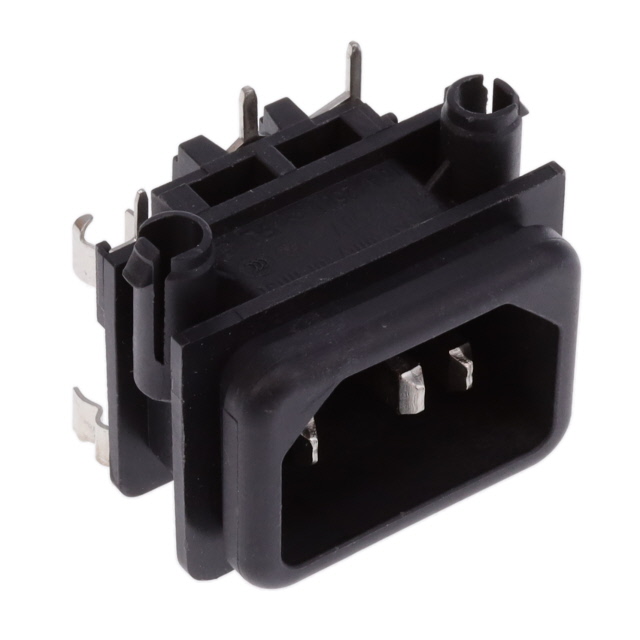

SCHURTER Inc. GSF1.1202.41	19.7 mm	27.7 mm	Unfiltered - Commercial		Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC	Solder	CCC CSA ENEC UL	Panel Mount Right Angle Snap-In Through Hole	Fuse Holder	10 A	0.079 in	2 mm
SCHURTER Inc. GSF1.0002.41	19.7 mm	27.7 mm	Unfiltered - Commercial	Mounting Hardware	Receptacle Male Blades	IP40	UL94 V-0	IEC 320-C14	250 VAC	Solder	CCC CSA ENEC UL	Panel Mount Flange Through Hole Right Angle		10 A	0.079 in	2 mm

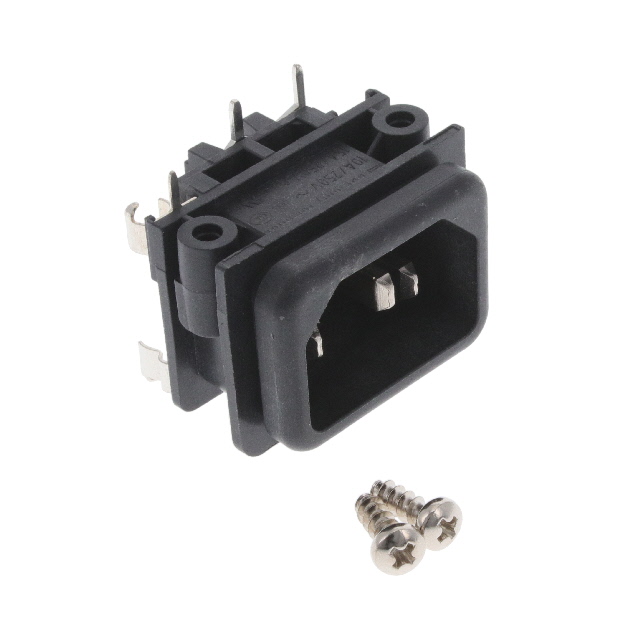

SCHURTER Inc. GSF1.1002.31	19.7 mm	27.7 mm	Unfiltered - Commercial	Mounting Hardware	Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC	Solder	CCC CSA ENEC UL	Panel Mount Flange Through Hole Right Angle	Fuse Holder	10 A	0.059 in	1.5 mm
SCHURTER Inc. GSF1.2204.41			Unfiltered - Commercial		Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC		CCC CSA ENEC UL			10 A
SCHURTER Inc. GSF1.1102.01			Unfiltered - Commercial		Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC		CCC CSA ENEC UL			10 A

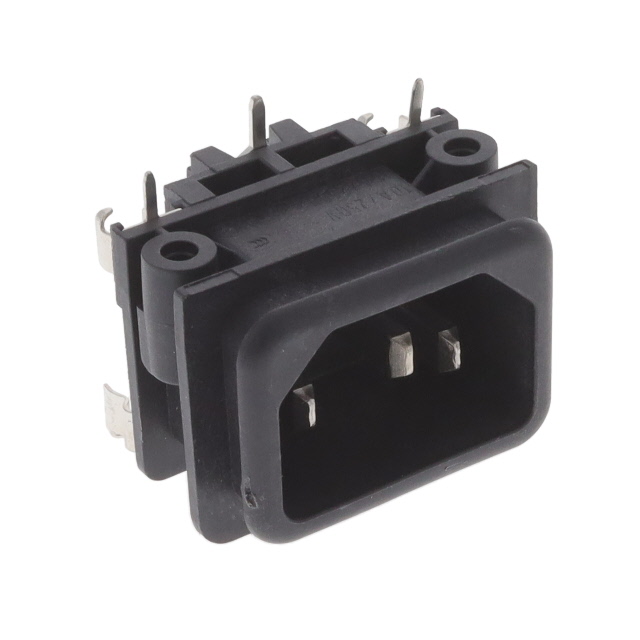

SCHURTER Inc. GSF1.2002.71			Unfiltered - Commercial		Receptacle Male Blades - Module	IP40	UL94 V-0	IEC 320-C14	250 VAC		CCC CSA ENEC UL			10 A
