0297-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Contact Finish	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0297-0-15-80-06-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	0.25 Ám	10 Áin	0.067 in	1.7 mm	Standard Tail	Gold	Beryllium Copper	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-80-06-80-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	5.08 Ám	200 Áin	0.067 in	1.7 mm	Standard Tail	Tin	Beryllium Copper	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-01-06-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	0.25 Ám	10 Áin	0.067 in	1.7 mm	Standard Tail	Gold	Beryllium Copper	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-15-06-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	0.25 Ám	10 Áin	0.067 in	1.7 mm	Standard Tail	Gold	Beryllium Copper	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-01-06-01-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	5.08 Ám	200 Áin	0.067 in	1.7 mm	Standard Tail	Tin-Lead	Beryllium Copper	0.51 mm	0.02 in

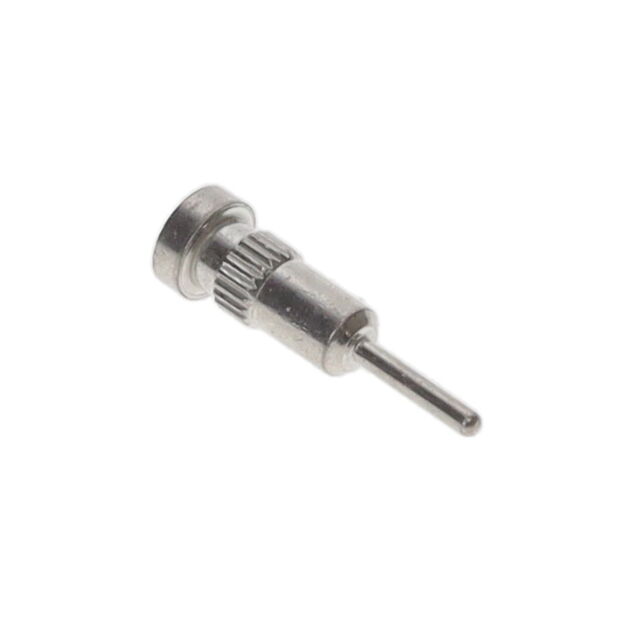

Mill-Max Manufacturing Corp. 0297-0-15-01-06-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	0.76 Ám	30 Áin	0.067 in	1.7 mm	Standard Tail	Gold	Beryllium Copper	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-15-06-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	2.16 mm	0.085 "	4.06 mm	0.16 "	0.31 in	7.87 mm	Knurled Press-Fit	0.76 Ám	30 Áin	0.067 in	1.7 mm	Standard Tail	Gold	Beryllium Copper	0.51 mm	0.02 in
