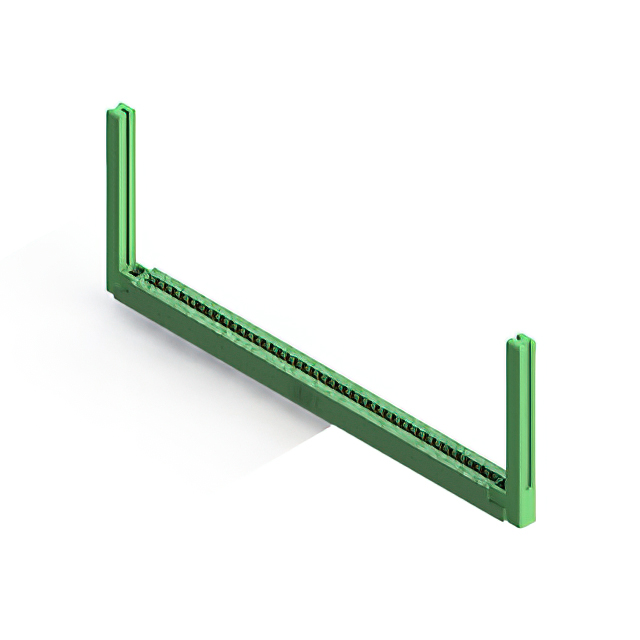

306-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Gender | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Number of Positions/Bay/Row | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Termination | Pitch | Pitch | Contact Material | Number of Positions [custom] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder Eyelet(s) | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount Through Hole | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Tin | Dual | 42 | Green | -40 C | 105 ░C | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Solder Eyelet(s) | 3.96 mm | 0.156 in | Copper Alloy | 84 | Panel Mount | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Gold | Dual | 42 | Green | -40 C | 105 ░C | 2 | Cantilever | Solder | 3.96 mm | 0.156 in | Copper Alloy | 84 | Through Hole |
