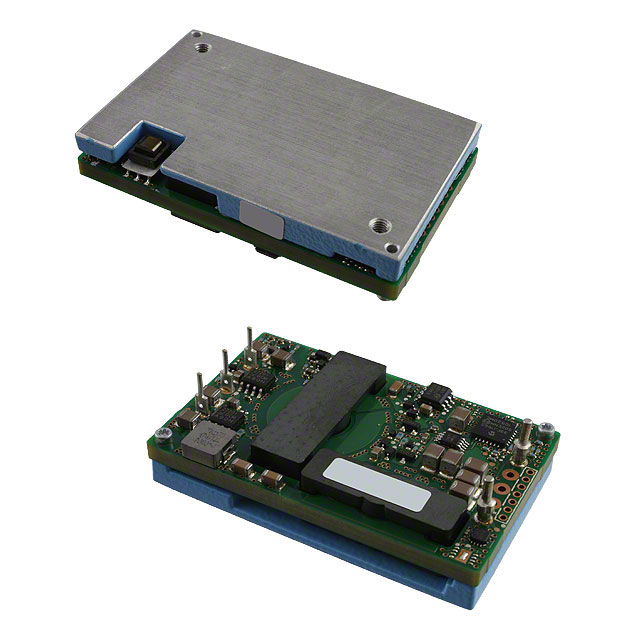

QBVW025 Series

Catalog

DC DC CONVERTER 12V 300W

Part	Type	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Features	Power (Watts)	Voltage - Output 1	Mounting Type	Efficiency	Control Features	Size / Dimension [y]	Size / Dimension [z]
OmniOn Power™ QBVW025A0B41Z	Intermediate Bus Converter	8-DIP Module 1/4 Brick	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable
OmniOn Power™ QBVW025A0B1-PHZ	Isolated Module	8-DIP Module	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable
OmniOn Power™ QBVW025A0B1-PHZ	Isolated Module	8-DIP Module	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable
OmniOn Power™ QBVW025A0B641Z	Isolated Module	8-DIP Module	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.5 in	2.3 in	1.45 in	58.4 mm			2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable	36.8 mm	12.6 mm
OmniOn Power™ QBVW025A0B641Z	Isolated Module	8-DIP Module	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.5 in	2.3 in	1.45 in	58.4 mm			2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable	36.8 mm	12.6 mm
OmniOn Power™ QBVW025A0B41Z	Intermediate Bus Converter	8-DIP Module 1/4 Brick	1	36 V	85 °C	-40 C	75 V	ITE (Commercial)	25 A	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	2250 VDC	OCP OTP OVP Remote On/Off UVLO	300 W	12 V	Through Hole	96 %	Active Low Enable
