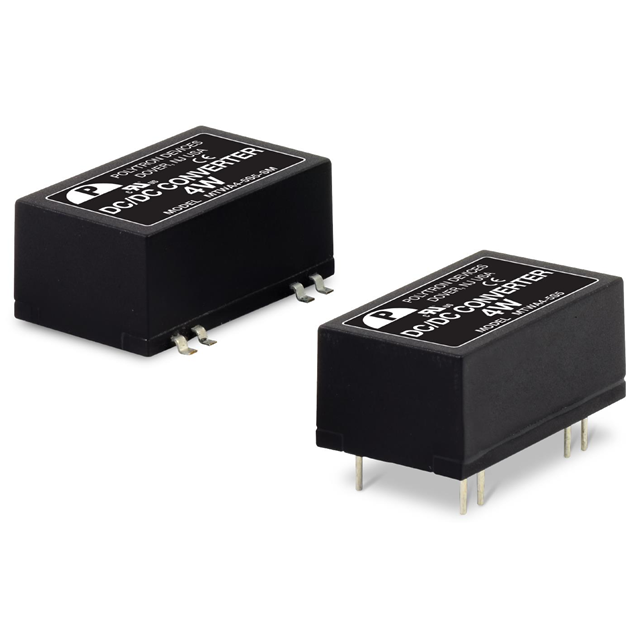

MTWA4 Series

Catalog

DC/DC CONVERTER 4 WATTS MEDICAL

Part	Features	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Type	Number of Outputs	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Efficiency	Current - Output (Max)	Current - Output (Max)
Daburn Electronics MTWA4-12S12-SM	Remote On/Off	Surface Mount	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-SMD Module 7 Leads	292 mA	18 V	9 V	12 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in
Daburn Electronics MTWA4-12S15	Remote On/Off	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-DIP Module 7 Leads		18 V	9 V	15 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "
Daburn Electronics MTWA4-48S12	Remote On/Off	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-DIP Module 7 Leads	292 mA	75 V	36 V	12 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "
Daburn Electronics MTWA4-48S15	Remote On/Off	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-DIP Module 7 Leads		75 V	36 V	15 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "
Daburn Electronics MTWA4-5-15	Remote On/Off	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-DIP Module 7 Leads		12 V	4.5 V	15 V	3.5 W	Isolated Module	2	5000 V	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "	-15 V	81 %	117 mA	117 mA
Daburn Electronics MTWA4-5S9-SM	Remote On/Off	Surface Mount	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-SMD Module 7 Leads	389 mA	12 V	4.5 V	9 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in		78 %
Daburn Electronics MTWA4-12S9-SM	Remote On/Off	Surface Mount	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-SMD Module 7 Leads	389 mA	18 V	9 V	9 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in		79 %
Daburn Electronics MTWA4-48-12-SM	Remote On/Off	Surface Mount	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-SMD Module 7 Leads		75 V	36 V	12 V	3.5 W	Isolated Module	2	5000 V	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in	-12 V		146 mA
Daburn Electronics MTWA4-5S15	Remote On/Off	Through Hole	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-DIP Module 7 Leads		12 V	4.5 V	15 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.2 mm	0.96 "	14.4 mm	0.4 "
Daburn Electronics MTWA4-12S5-SM	Remote On/Off	Surface Mount	ITE (Commercial) Medical	105 C	-40 °C	CB UL	16-SMD Module 7 Leads	700 mA	18 V	9 V	5 V	3.5 W	Isolated Module	1	5000 V	24.3 mm	0.57 "	10.5 mm	0.96 "	14.4 mm	0.41 in		79 %
