G-INS-M32 Series

Catalog

CABLE GLAND 15-21MM M32 S STEEL

Part	Color	Type	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Includes	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424545	Silver	Cable Gland	Stainless Steel	15 mm	0.591 in	0.315 "	8 mm	O-Ring Seal	IP66 IP68 IP69	M32x1.5	0.827 in	21 mm	-40 C	100 °C

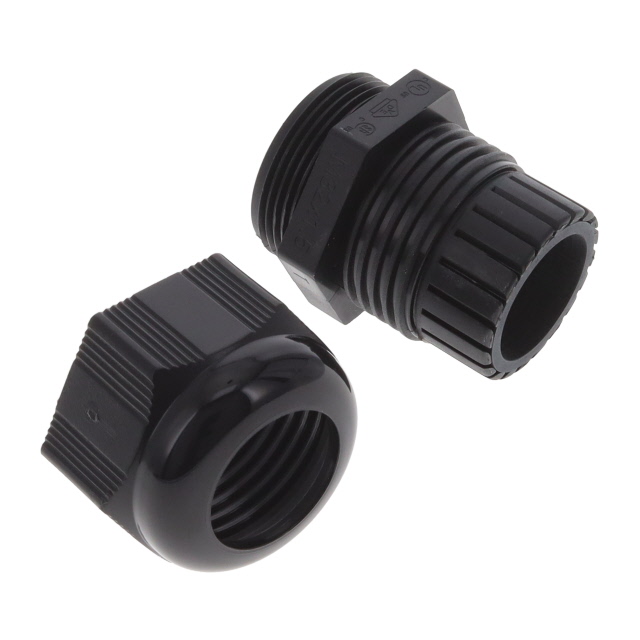

Phoenix Contact 1411136	Black	Cable Gland	Polyamide (PA) Nylon	15 mm	0.591 in	0.394 in	10 mm	Seal	IP66 IP68	M32	0.827 in	21 mm	-40 C	100 °C
Phoenix Contact 1424473	Gray	Cable Gland	Polyamide (PA) Nylon	18.01 mm	0.709 "	0.591 in	15 mm	Seal	IP66 IP68	M32x1.5			-40 C	100 °C	0.984 in	25 mm

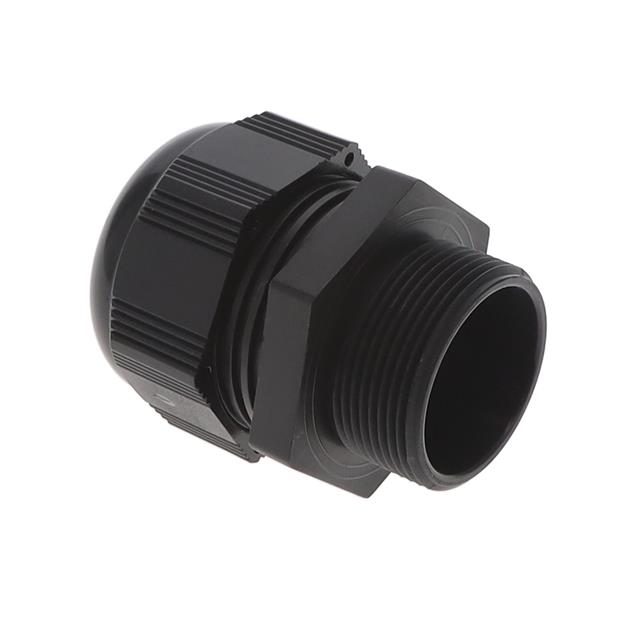

Phoenix Contact 1424483	Black	Cable Gland	Polyamide (PA) Nylon	18.01 mm	0.709 "	0.63 in	16 mm	Seal	IP66 IP68	M32x1.5			-40 C	100 °C	0.984 in	25 mm

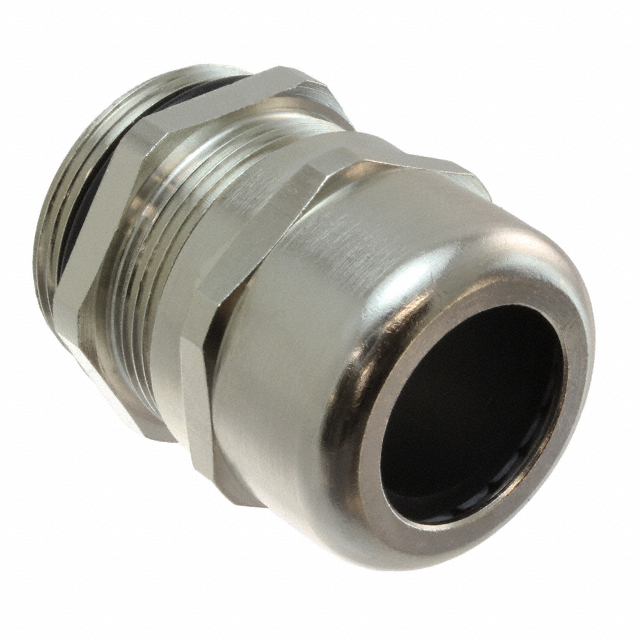

Phoenix Contact 1411166	Silver	Cable Gland	Brass Nickel Plated	15 mm	0.591 in	0.315 "	8 mm	O-Ring Seal	IP66 IP68 IP69	M32	0.827 in	21 mm	-40 C	100 °C
Phoenix Contact 1424528	Silver	Cable Gland	Brass Nickel Plated	13 mm	0.512 in	0.354 in	9 mm	O-Ring Seal	IP66 IP68 IP69	M32x1.5			-40 C	100 °C	0.709 in	18.01 mm
