SCT1655 Series

Catalog

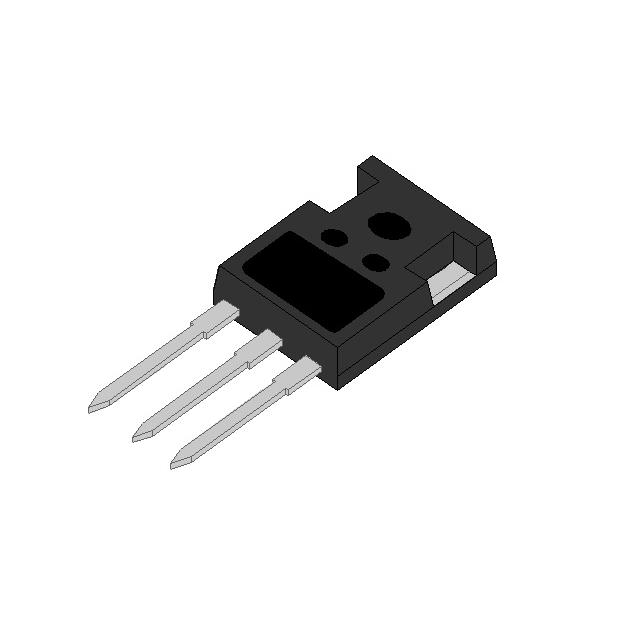

SCR 1.6KV 55A TO247J

Part	Package / Case	Voltage - On State (Vtm) (Max) [Max]	Current - Off State (Max) [Max] [custom]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)	SCR Type	Current - Hold (Ih) (Max) [Max]	Current - On State (It (AV)) (Max)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
SMC Diode Solutions SCT1655SJ	TO-247-3	1.8 V	10 µA	TO-247J	70 mA	1.6 kV	55 A	1.5 V	550 A	Standard Recovery	200 mA	35 A	Through Hole	-40 C	125 °C
