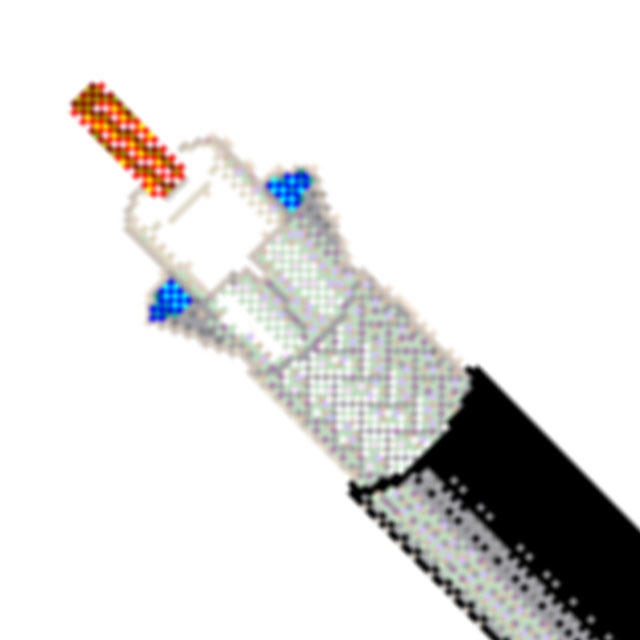

1865A Series
Manufacturer: Belden Inc.
Beta
⌘K
#25 GIFHDPE SH FR PVC
| Part | Conductor Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Cable Type | Jacket (Insulation) Material | Length [x] | Length [x] | Wire Gauge | Jacket Color | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 95 % 100 % | 0.094 in | 2.39 mm | 75 ░C | -30 ░C | 82 | Aluminum Polyester Copper Tinned | 19 | 37 AWG | 0.15 in | 3.81 mm | 75 Ohms | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 AWG | Blue | Braid Foil |
 Belden Inc. | Copper Bare | 95 % 100 % | 0.094 in | 2.39 mm | 75 ░C | -30 ░C | 82 | Aluminum Polyester Copper Tinned | 19 | 37 AWG | 0.15 in | 3.81 mm | 75 Ohms | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 AWG | Red | Braid Foil |
Belden Inc. | Copper Bare | 95 % 100 % | 0.094 in | 2.39 mm | 75 ░C | -30 ░C | 82 | Aluminum Polyester Copper Tinned | 19 | 37 AWG | 0.15 in | 3.81 mm | 75 Ohms | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 AWG | Orange | Braid Foil |
Belden Inc. | Copper Bare | 95 % 100 % | 0.094 in | 2.39 mm | 75 ░C | -30 ░C | 82 | Aluminum Polyester Copper Tinned | 19 | 37 AWG | 0.15 in | 3.81 mm | 75 Ohms | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 AWG | Gray | Braid Foil |
Belden Inc. | Copper Bare | 95 % 100 % | 0.094 in | 2.39 mm | 75 ░C | -30 ░C | 82 | Aluminum Polyester Copper Tinned | 19 | 37 AWG | 0.15 in | 3.81 mm | 75 Ohms | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 AWG | White | Braid Foil |
