201648 Series

Manufacturer: Molex

Catalog

SPOT-ON WIRE-TO-BOARD HEADER WITH NAIL, 1.50MM PITCH, SINGLE ROW, VERTICAL, 10 CIRCUITS, WITH POTTING CAPABILITY, MATTE TIN (SN) PLATING, NATURAL

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Fastening Type	Contact Shape	Termination	Number of Rows	Contact Finish - Post	Number of Positions	Mounting Type	Voltage Rating	Shrouding	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Contact Material	Contact Type	Features	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Molex 2016480100	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Natural	Latch Holder	Square	Solder	1	Tin	10	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire

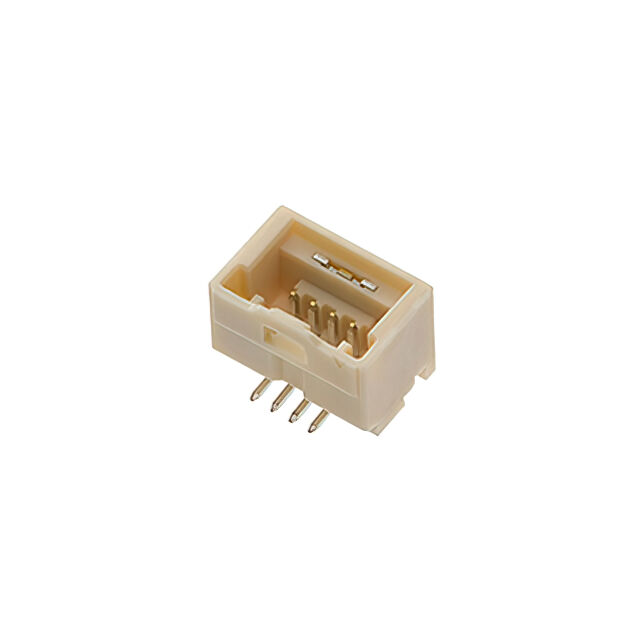

Molex 2016480070	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Natural	Latch Holder	Square	Solder	1	Tin	7	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480081	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Black	Latch Holder	Square	Solder	1	Tin	8	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire	39.4 Áin	1 Ám
Molex 2016480111	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Black	Latch Holder	Square	Solder	1	Tin	11	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480071	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Black	Latch Holder	Square	Solder	1	Tin	7	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480090	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Natural	Latch Holder	Square	Solder	1	Tin	9	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480131	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Black	Latch Holder	Square	Solder	1	Tin	13	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480050	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Natural	Latch Holder	Square	Solder	1	Tin	5	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire

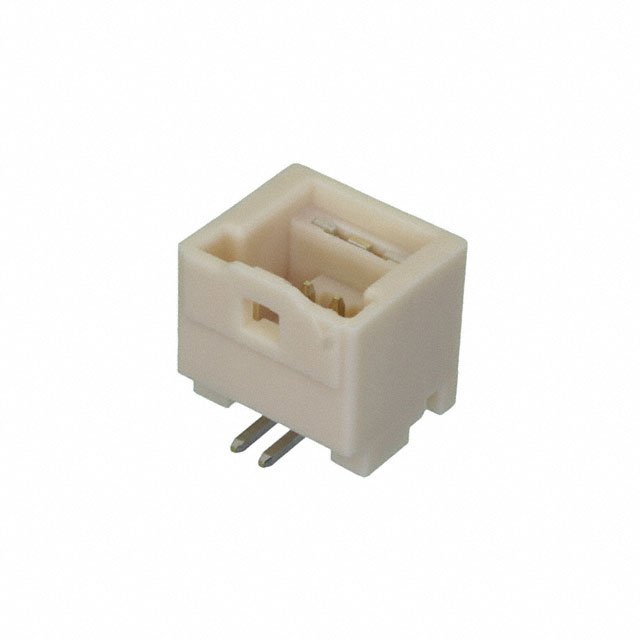

Molex 2016480020	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Natural	Latch Holder	Square	Solder	1	Tin	2	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
Molex 2016480151	General Purpose	39.4 çin	1 çm	-40 C	105 ░C	Glass Filled Nylon Polyamide (PA)	0.354 in	9 mm	Header	39.4 µin	1 µm	Black	Latch Holder	Square	Solder	1	Tin	15	Surface Mount	100 V	Shrouded - 4 Wall	Varies by Wire Gauge	UL94 V-0	All	Brass	Male Pin	Pick and Place Solder Retention	Board to Cable/Wire
