GBC16D Series

Catalog

CONN HEADER SMD 32POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Mating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows [custom]	Contact Shape	Shrouding	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Insulation Material	Fastening Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Connector Type

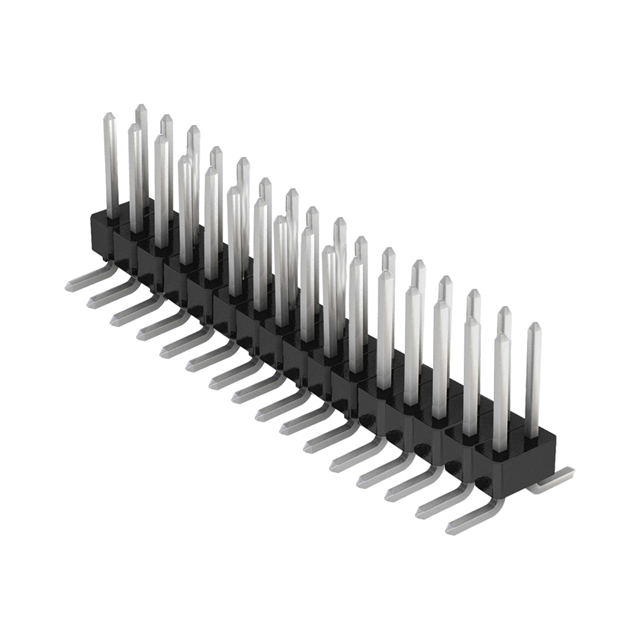

Sullins Connector Solutions GBC16DABN-M30	2.54 µm	100 µin	0.23 in	5.84 mm	Tin	All	0.1 in	2.54 mm	Gold	Board to Board Cable	150 °C	-65 ░C	UL94 V-0	Phosphor Bronze	0.25 µm	10 µin	Male Pin	2	Square	Unshrouded	0.1 "	2.54 mm	Surface Mount	Black	Nylon 9T Polyamide (PA9T)	Push-Pull	Solder	0.1 in	2.54 mm	3 A	Header Breakaway
Sullins Connector Solutions GBC16DFBN-M30	2.54 µm	100 µin	0.318 in	8.08 mm	Tin	All	0.1 in	2.54 mm	Gold	Board to Board Cable	150 °C	-65 ░C	UL94 V-0	Phosphor Bronze	0.25 µm	10 µin	Male Pin	2	Square	Unshrouded	0.1 "	2.54 mm	Surface Mount	Black	Nylon 9T Polyamide (PA9T)	Push-Pull	Solder	0.1 in	2.54 mm	3 A	Header Breakaway
