TS3V330 Series

Catalog

3.3-V, 2:1 (SPDT), 4-CHANNEL VIDEO SWITCH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Multiplexer/Demultiplexer Circuit	Package / Case	Package / Case	Mounting Type	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Circuit	Supplier Device Package	Applications	On-State Resistance (Max) [Max]	Features	-3db Bandwidth	Number of Channels [custom]	Package / Case [y]	Package / Case [y]	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case [custom]	Package / Case [x]
Texas Instruments TS3V330D	85 C	-40 ¯C	2:1	16-SOIC	0.154 in 3.9 mm	Surface Mount	3 V	3.6 V	SPDT	16-SOIC	Video	10 Ohms	RGB	300 MHz	4
Texas Instruments TS3V330PW	85 C	-40 ¯C	2:1	16-TSSOP		Surface Mount	3 V	3.6 V	SPDT	16-TSSOP	Video	10 Ohms	RGB	300 MHz	4	4.4 mm	0.173 in
Texas Instruments TS3V330RGYR	85 C	-40 ¯C	2:1	16-VFQFN Exposed Pad		Surface Mount	3 V	3.6 V	SPDT	16-VQFN	Video	10 Ohms	RGB	300 MHz	4			3.5	4
Texas Instruments TS3V330PWR	85 C	-40 ¯C	2:1	16-TSSOP		Surface Mount	3 V	3.6 V	SPDT	16-TSSOP	Video	10 Ohms	RGB	300 MHz	4	4.4 mm	0.173 in

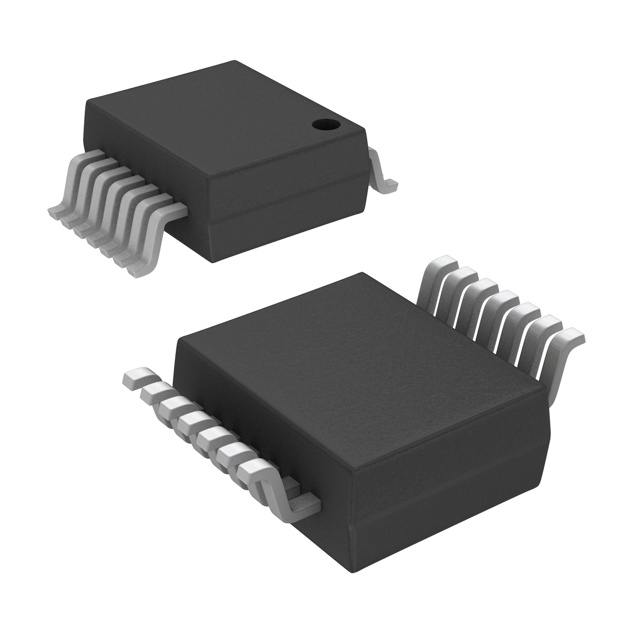

Texas Instruments TS3V330DGVR	85 C	-40 ¯C	2:1	16-TFSOP	0.173 "	Surface Mount	3 V	3.6 V	SPDT	16-TVSOP	Video	10 Ohms	RGB	300 MHz	4					4.4 mm
Texas Instruments TS3V330DR	85 C	-40 ¯C	2:1	16-SOIC	0.154 in 3.9 mm	Surface Mount	3 V	3.6 V	SPDT	16-SOIC	Video	10 Ohms	RGB	300 MHz	4
Texas Instruments TS3V330DBQR	85 C	-40 ¯C	2:1	16-SSOP		Surface Mount	3 V	3.6 V	SPDT	16-SSOP	Video	10 Ohms	RGB	300 MHz	4		3.9 mm				0.154 in
