DR-25 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEATSHRINK TWIN WALL 1 1/4" BK

Part	Recovered Wall Thickness	Recovered Wall Thickness	Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Qualification	Length	Length	Length	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]	Spool Size [x]	Spool Size [x]	Inner Diameter - Recovered
TE Connectivity AMP Connectors DR-25-TW-1-1/4-0-SP	1.09 mm	0.043 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	15.01 mm	0.591 in	125 °C	Tubing Flexible	1.24 in	31.5 mm
TE Connectivity AMP Connectors DR-25-1-1/2-0-SP	2.41 mm	0.095 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	19.05 mm	0.75 "	150 °C	Tubing Flexible	1.5 in	38.1 mm	100 ft	30.5 m	AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m	25 ft
TE Connectivity AMP Connectors DR-25-1/8-0-SP	0.76 mm	0.03 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	1.57 mm	0.062 in	150 °C	Tubing Flexible	0.125 in	3.18 mm				Enter Number of Feet in Order Quantity	1.52 m 15.2 m	50 ft 60 in	91.4 m	300 ft
TE Connectivity AMP Connectors DR-25-3-0-SP	3.18 mm	0.125 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	38.1 mm	1.5 in	150 °C	Tubing Flexible	3 in	76.2 mm			AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m	25 ft

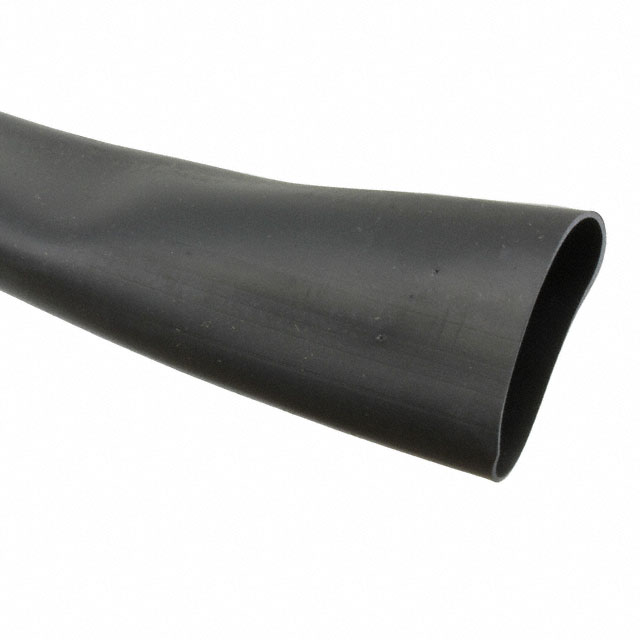

TE Connectivity AMP Connectors DR-25-1-0-SP	1.78 mm	0.07 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	12.7 mm	0.5 "	150 °C	Tubing Flexible	1 in	25.4 mm	100 ft	30.5 m	AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m 15.2 m 61 m	25 ft 50 ft 200 ft
TE Connectivity AMP Connectors DR-25-TW-3/4-0	0.76 mm	0.03 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	9.53 mm	0.375 in	125 °C	Tubing Flexible	0.748 in	19 mm
TE Connectivity AMP Connectors DR-25-1/4-0-SP	0.89 mm	0.035 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	3.18 mm	0.125 in	150 °C	Tubing Flexible		0.25 "			AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m 15.2 m 45.7 m	25 ft 50 ft 150 '			6.35 mm
TE Connectivity AMP Connectors DR-25-1/2-0-SP	1.22 mm	0.048 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	6.35 mm	0.25 in	150 °C	Tubing Flexible	0.5 "	12.7 mm			AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m 15.2 m 45.7 m	25 ft 50 ft 150 '
TE Connectivity AMP Connectors DR-25-3/8-0-SP	1.02 mm	0.04 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2	4.75 mm	0.187 in	150 °C	Tubing Flexible	0.375 in	9.53 mm			AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	1.52 m 7.6 m	25 ft 60 in	91.4 m	300 ft

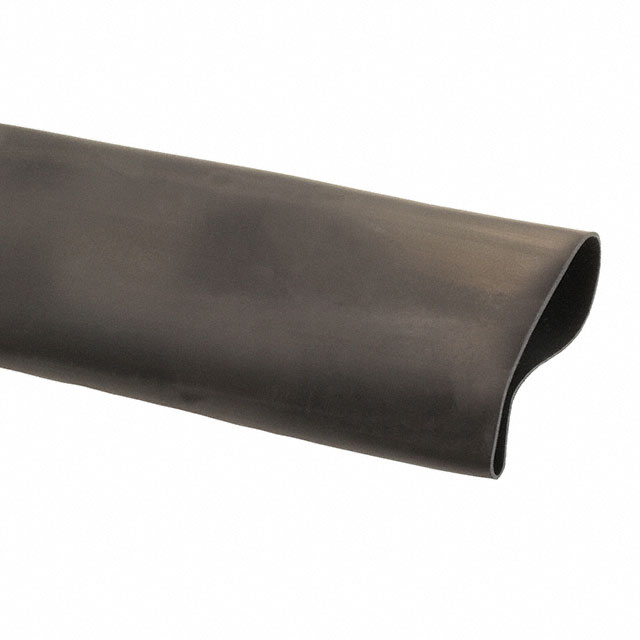

TE Connectivity AMP Connectors DR-25-2-0-SP	2.79 mm	0.11 in	Elastomer Irradiated	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	-75 °C	150 °C	Black	1	2		1 in	150 °C	Tubing Flexible	2 in	50.8 mm			AMS-DTL-23053/16	Enter Number of Feet in Order Quantity	7.6 m	25 ft				22.9 m	75 ft	25.4 mm
