C091 11H008 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

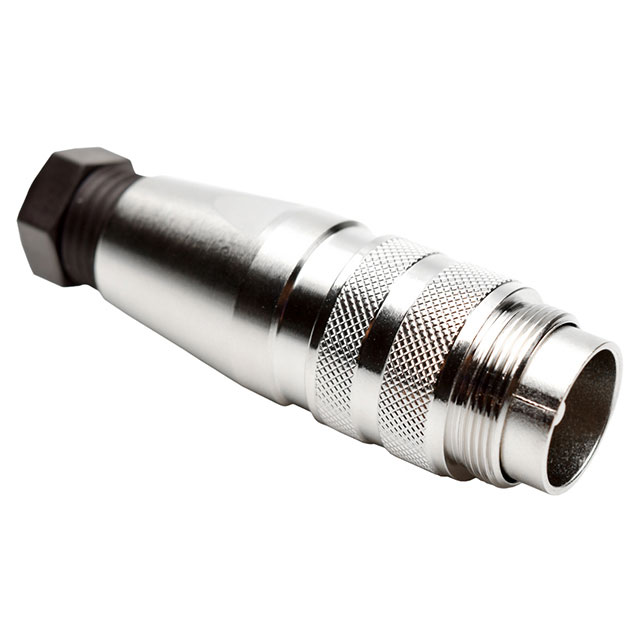

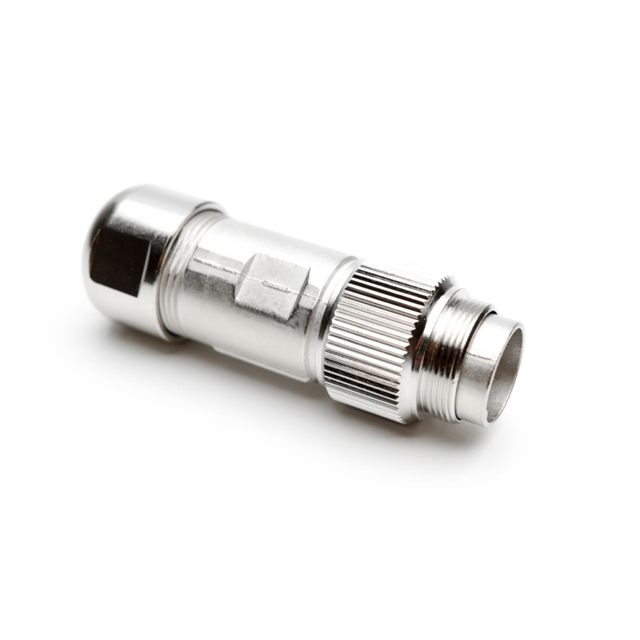

CONN PLUG HSNG MALE 8POS INLINE
| Part | Fastening Type | Insert Material | Number of Positions | Connector Type | Shell Material | Shell Finish | Ingress Protection | Material Flammability Rating | Note | Mounting Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Features | Type | Shielding | Contact Type | Shell Size - Insert | Contact Size | Housing Color | Contact Shape | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Threaded | Thermoplastic | 8 | Plug Housing | Zinc Die Cast | Nickel | IP68 - Dust Tight Waterproof | UL94 V-0 | Contacts Not Included | Free Hanging (In-Line) | Keyed | -40 C | 100 °C | Backshell Coupling Nut | For Male Pins | Shielded | Crimp | M16-8 | 1.5 mm | Silver | Circular | |
 Amphenol Tuchel Industrial | Threaded | Thermoplastic | 8 | Plug Housing | Die Cast | Nickel | IP65 IP67 IP69K | UL94 V-0 | Contacts Not Included | Free Hanging (In-Line) | Keyed | -40 C | 100 °C | Backshell Cable Clamp Coupling Nut | For Male Pins | Shielded | Crimp | M16-8 | 1.5 mm | Silver | Circular | 1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers |
 Amphenol Tuchel Industrial | Threaded | Thermoplastic | 8 | Plug Housing | Die Cast | Nickel | IP65 IP67 IP69K | UL94 V-0 | Contacts Not Included | Free Hanging (In-Line) | Keyed | -40 C | 100 °C | Backshell Cable Clamp Coupling Nut | For Male Pins | Shielded | Crimp | M16-8 | 1.5 mm | Silver | Circular | 1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers |
