8T33FS6222 Series

Low Voltage, 1:15 Differential PECL Clock Divider and Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Voltage, 1:15 Differential PECL Clock Divider and Fanout Buffer

Part	Operating Temperature [Max]	Operating Temperature [Min]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Type	Mounting Type	Ratio - Input:Output	Input	Package / Case	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Supplier Device Package	Number of Circuits

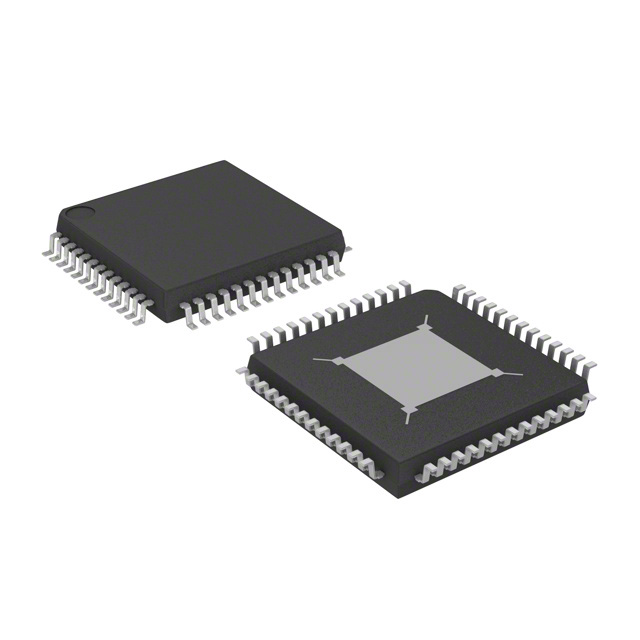

Renesas Electronics Corporation 8T33FS6222EPGI	85 °C	-40 °C			Fanout Buffer (Distribution)	Surface Mount	1:15	PECL	52-LQFP Exposed Pad	2 GHz	2.625 V 3.465 V	2.375 V 3.135 V	PECL	52-PTQFP (10x10)	1
Renesas Electronics Corporation 8T33FS6222EPGI8	85 °C	-40 °C			Fanout Buffer (Distribution)	Surface Mount	1:15	PECL	52-LQFP Exposed Pad	2 GHz	2.625 V 3.465 V	2.375 V 3.135 V	PECL	52-PTQFP (10x10)	1

Catalog

Low Voltage, 1:15 Differential PECL Clock Divider and Fanout Buffer

Description

The 8T33FS6222 is a bipolar monolithic differential clock fanout buffer. Designed for most demanding clock distribution systems, the 8T33FS6222 supports various applications that require the distribution of precisely aligned differential clock signals. Using SiGe technology and a fully differential architecture, the device offers very low skew outputs and superior digital signal characteristics. Target applications for this clock driver are high-performance clock distribution in computing, networking, and telecommunication systems.
