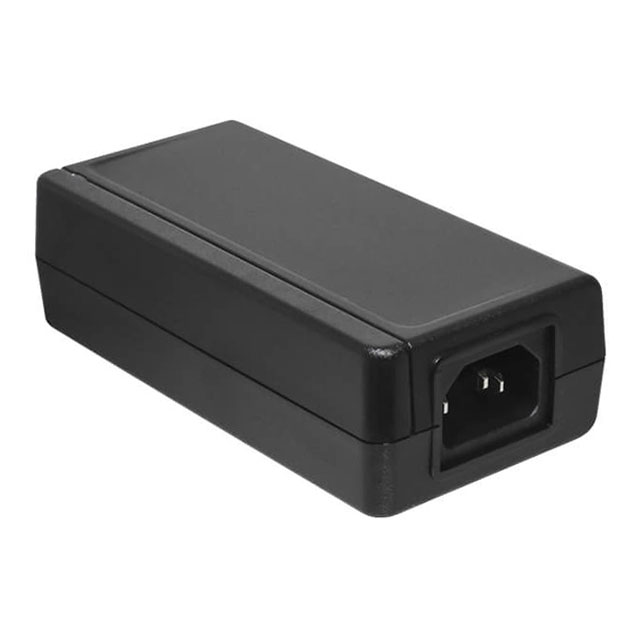

SDM65-U Series
Desktop AC Adapters ac-dc, 24 Vdc, 2.71 A, SW, C14 desk-top, P5 rt center pos, no cord, level VI, MED
Manufacturer: CUI Inc.
Catalog
Desktop AC Adapters ac-dc, 24 Vdc, 2.71 A, SW, C14 desk-top, P5 rt center pos, no cord, level VI, MED
...
| Part | Input Connector | Efficiency | Cord Length | Cord Length | Power (Watts) | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Type | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) [Max] | Approval Agency | Form | Operating Temperature [Max] | Operating Temperature [Min] | Polarization | Region Utilized | No Load Power Consumption | Standard Number | Voltage - Output | Output Connector [z] | Output Connector [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | IEC 320-C14 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 3.62 A | CB Scheme CSA EN FCC IEC PSE UL | Desktop (Class I) | 40 °C | 0 °C | Positive Center | North America | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 18 V | ||
CUI Inc. | IEC 320-C14 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 1.36 A | CB Scheme CSA EN FCC IEC PSE UL | Desktop (Class I) | 40 °C | 0 °C | Positive Center | International | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 48 V | ||
 CUI Inc. | IEC 320-C8 | Level VI | 1.5 m | 59 in | 60 W | 2.1 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 5 A | cUL PSE TUV UKCA UL | Desktop (Class II) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 12 V | 9.5 mm | 5.5 mm | |
CUI Inc. | IEC 320-C8 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 1.36 A | cUL PSE TUV UKCA UL | Desktop (Class II) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 48 V | ||
CUI Inc. | IEC 320-C8 | Level VI | 1.5 m | 59 in | 60 W | 9.5 mm | 2.1 mm 5.5 mm | Barrel Plug | Cord | Medical | 90 VAC | 264 VAC | 5 A | cUL PSE TUV UKCA UL | Desktop (Class II) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 12 V | ||
 CUI Inc. | IEC 320-C14 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug | Cord | Medical | 90 VAC | 264 VAC | 1.36 A | CB Scheme CSA EN FCC IEC PSE UL | Desktop (Class I) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 48 V | ||
CUI Inc. | IEC 320-C8 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 2.71 A | cUL PSE TUV UKCA UL | Desktop (Class II) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 24 V | ||
CUI Inc. | IEC 320-C14 | Level VI | 1.5 m | 59 in | 65 W | 2.1 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 4.34 A | CB Scheme CSA EN FCC IEC PSE UL | Desktop (Class I) | 40 °C | 0 °C | Positive Center | International | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 15 VDC | 9.5 mm | 5.5 mm | |
CUI Inc. | IEC 320-C8 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug | Cord | Medical | 90 VAC | 264 VAC | 3.43 A | cUL PSE TUV UKCA UL | Desktop (Class II) | 40 °C | 0 °C | Positive Center | North America | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 19 V | ||
CUI Inc. | IEC 320-C14 | Level VI | 1.5 m | 59 in | 65 W | 9.5 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Cord | Medical | 90 VAC | 264 VAC | 1.36 A | CB Scheme CSA EN FCC IEC PSE UL | Desktop (Class I) | 40 °C | 0 °C | Positive Center | Europe | 210 mW | 55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1 | 48 V |
