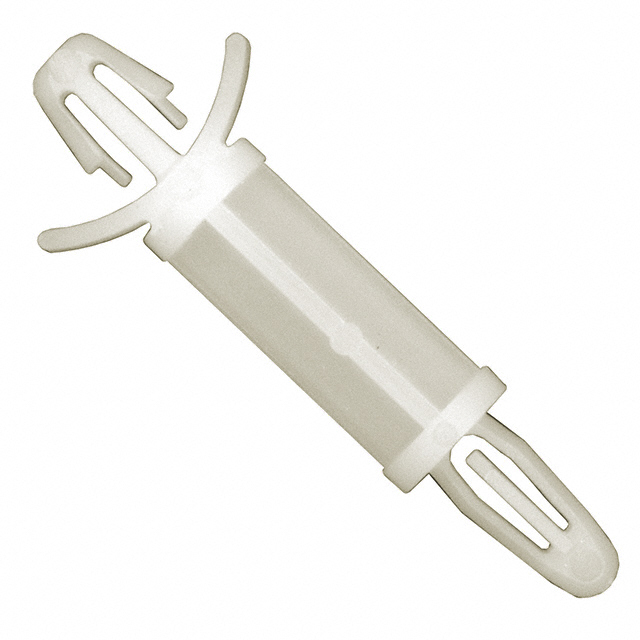

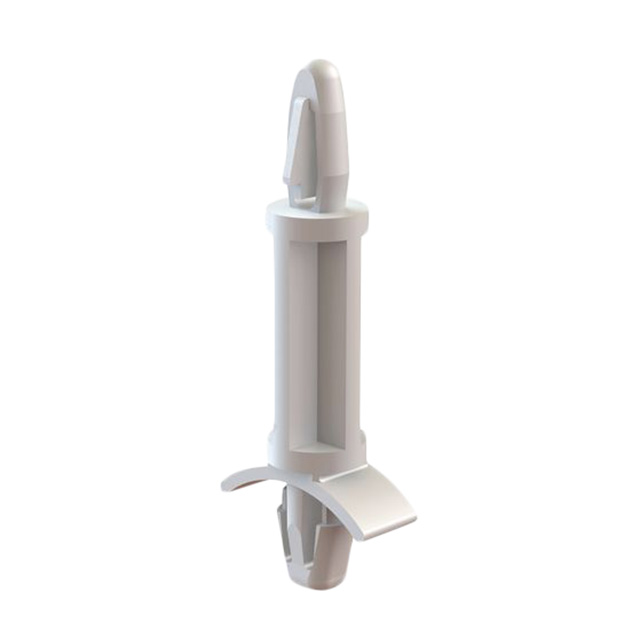

LCBS-12 Series
Manufacturer: Essentra Components
Beta
⌘K
BRD SPT SNAP LOCK NYLON 3/4"
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Features | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Material | Between Board Height | Between Board Height | Between Board Height | Length - Overall [x] | Length - Overall [x] | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Holding Type | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.1875 in | 0.187 in | 4.75 mm | High Temperature Winged | 3.99 mm | 0.157 " | Nylon | 19.05 mm | 0.75 " | 0.75 " | 37.6 mm | 1.48 in | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.08 in | 1.4 mm | 0.055 in | 2.03 mm | Snap Lock |
 Essentra Components | 0.1875 in | 0.187 in | 4.75 mm | Winged | 3.99 mm | 0.157 " | Nylon | 19.05 mm | 0.75 " | 0.75 " | 37.7 mm | 1.484 " | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.078 " | 0.79 mm | 0.031 in | 1.98 mm | Snap Lock |
 Essentra Components | 0.1875 in | 0.187 in | 4.75 mm | Winged | 3.99 mm | 0.157 " | Nylon | 12 mm | 0.472 in | 30.6 mm | 1.205 in | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.078 " | 0.79 mm | 0.031 in | 1.98 mm | Snap Lock | |
 Essentra Components | 0.1875 in | 0.187 in | 4.75 mm | Winged | 3.99 mm | 0.157 " | Nylon | 19.05 mm | 0.75 " | 0.75 " | 37.7 mm | 1.484 " | 1.57 mm | 0.062 in | 0.0625 in | Snap Lock | 0.078 " | 0.79 mm | 0.031 in | 1.98 mm | Snap Lock |
