AEA37 Series
Manufacturer: TE Intercontec
Beta
⌘K

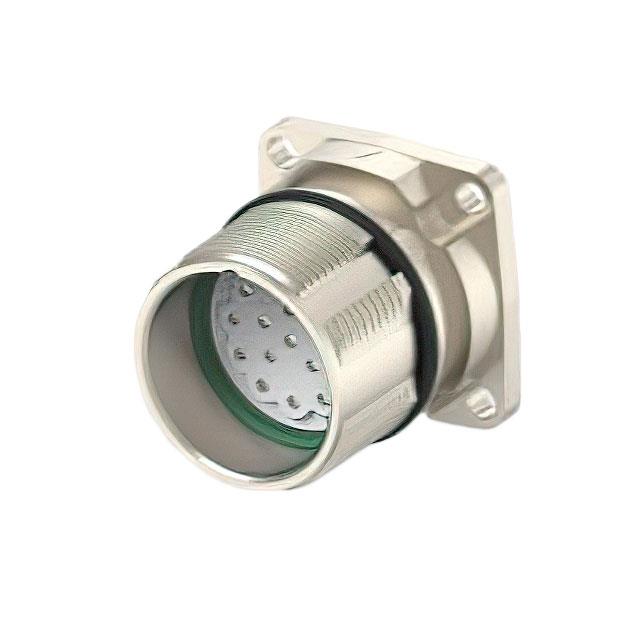

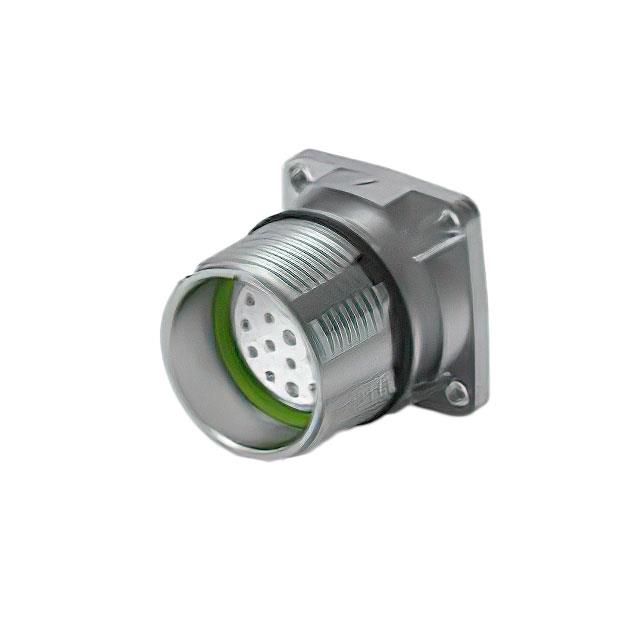

CONN RCPT HSG MALE 19POS PNL MT
| Part | Number of Positions | Fastening Type | Shielding | Type | Contact Shape | Note | Orientation | Shell Size - Insert | Insert Material | Includes | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Shell Finish | Shell Material | Mounting Type | Mounting Feature | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | 19 | Push-Twist | Unshielded | For Male Pins | Circular | Contacts Not Included | Keyed | M23-19 | Polybutylene Terephthalate (PBT) | 1 Connector 1 O-Ring | IP66 IP67 | -20 ░C | 130 °C | UL94 V-0 | Nickel | Zinc Die Cast | Panel Mount | Flange | Silver | Receptacle Housing |
 TE Intercontec | 19 | Push-Twist | Unshielded | For Male Pins | Circular | Contacts Not Included | Keyed | M23-19 | IP66 IP67 | -20 ░C | 130 °C | UL94 V-0 | Nickel | Zinc Die Cast | Panel Mount | Silver | Receptacle Housing |
