WP4060 Series

Catalog

SINGLE COLOR LEDS RED 625NM 15MCD 70 DEG DIFFUSED

Part	Color	Mounting Type	Viewing Angle	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Current - Test	Configuration	Package / Case	Supplier Device Package	Lens Color	Wavelength - Dominant	Lens Style	Height (Max) [Max] [z]	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage Rating	Lens Type	Current

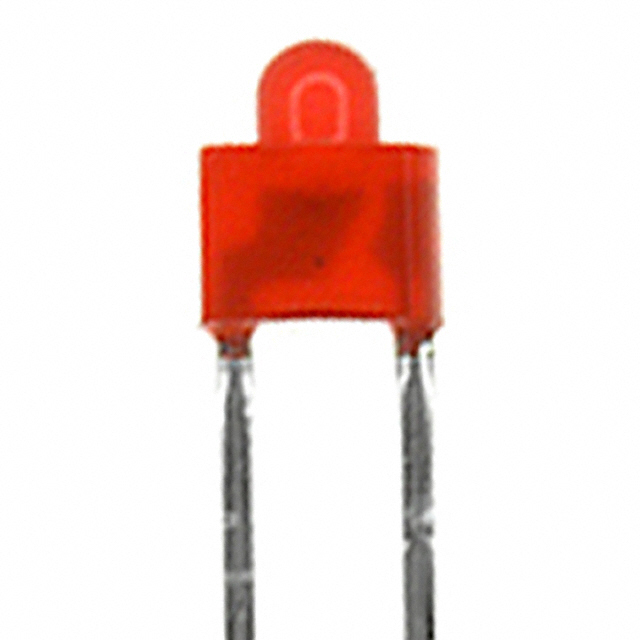

Kingbright WP4060ID	Red	Through Hole	70 °	Diffused	2.4 mm	3.3 mm	1.8 mm Dia	2 V	627 nm	20 mA	Standard	Radial	Radial Lead	Red	617 nm	Round with Domed Top	4.1 mm	8 mcd

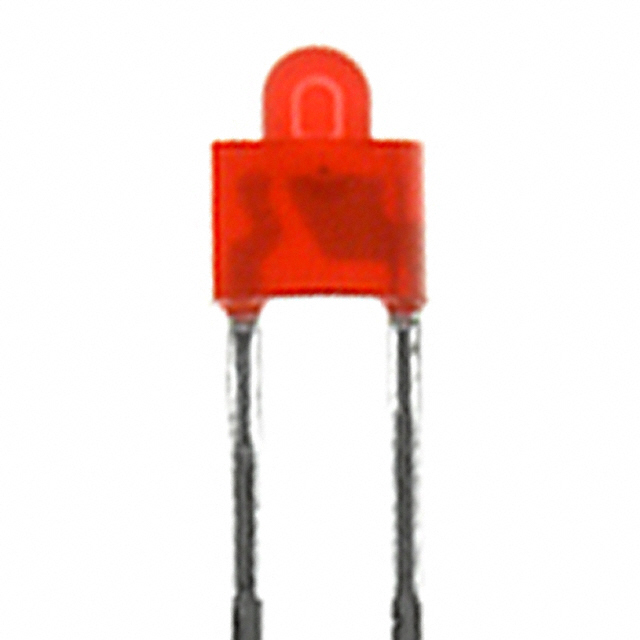

Kingbright WP4060SRD	Red	Through Hole	70 °	Diffused	2.4 mm	3.3 mm	1.8 mm Dia	1.85 V	655 nm	20 mA	Standard	Radial	Radial Lead	Red	640 nm	Round with Domed Top	4.1 mm	80 mcd
Kingbright WP4060VH/IGD	Green (x 1) Red (x 1)	Right Angle Through Hole	70 °				1.8 mm Dia		568 nm 617 nm		2 High					Round with Domed Top			12 mcd	8 mcd	1.9 V 2 V	Diffused Tinted	25 mA 30 mA

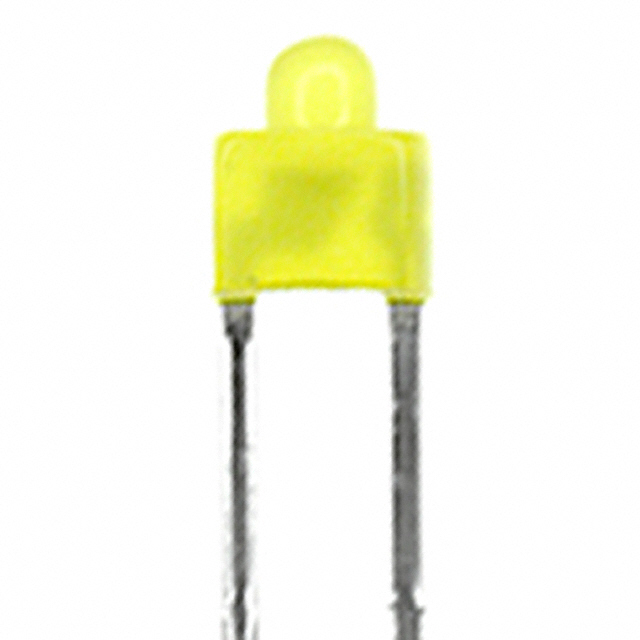

Kingbright WP4060YD	Yellow	Through Hole	70 °	Diffused	2.4 mm	3.3 mm	1.8 mm Dia	2.1 V	590 nm	20 mA	Standard	Radial	Radial Lead	Yellow	588 nm	Round with Domed Top	4.1 mm	8 mcd
Kingbright WP4060VH/GID	Green (x 1) Red (x 1)	Right Angle Through Hole	70 °				1.8 mm Dia		568 nm 617 nm		2 High					Round with Domed Top			12 mcd	8 mcd	1.9 V 2 V	Diffused Tinted	25 mA 30 mA

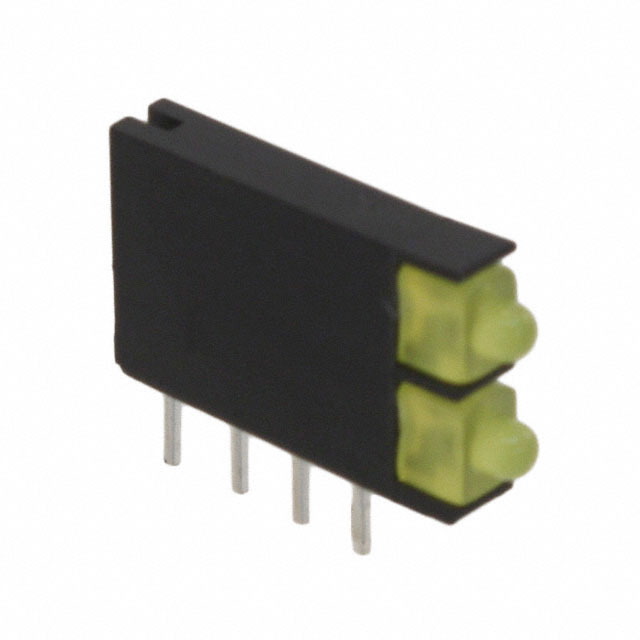

Kingbright WP4060VH/2YD	Yellow (x 2)	Right Angle Through Hole	70 °				1.8 mm Dia		588 nm		2 High					Round with Domed Top		6 mcd			2.1 V	Diffused Tinted	20 mA

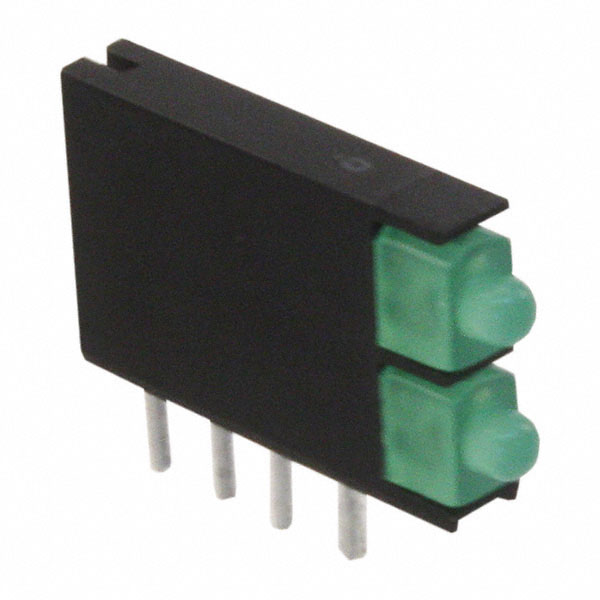

Kingbright WP4060VH/2GD	Green (x 2)	Right Angle Through Hole	70 °				1.8 mm Dia		568 nm		2 High					Round with Domed Top		9 mcd				Diffused Tinted	20 mA

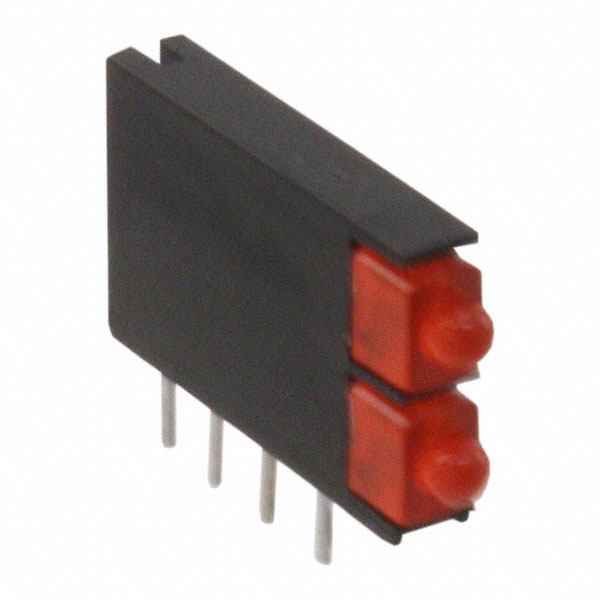

Kingbright WP4060VH/2ID	Red	Right Angle Through Hole	70 °				1.8 mm Dia				2 High					Round with Domed Top		11.5 mcd			2 V	Diffused Tinted	20 mA

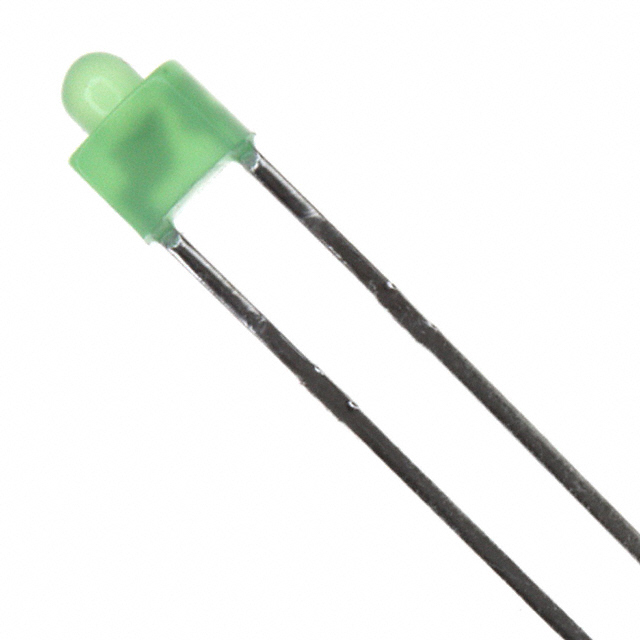

Kingbright WP4060GD	Green	Through Hole	70 °	Diffused	2.4 mm	3.3 mm	1.8 mm Dia	2.2 V	565 nm	20 mA	Standard	Radial	Radial Lead	Green	568 nm	Round with Domed Top	4.1 mm	12 mcd
Kingbright WP4060ED		Through Hole	70 °	Diffused	2.4 mm	3.3 mm	1.8 mm Dia	2 V	627 nm	20 mA	Standard	Radial	Radial Lead	Orange	617 nm	Round with Domed Top	4.1 mm	8 mcd
