2512-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

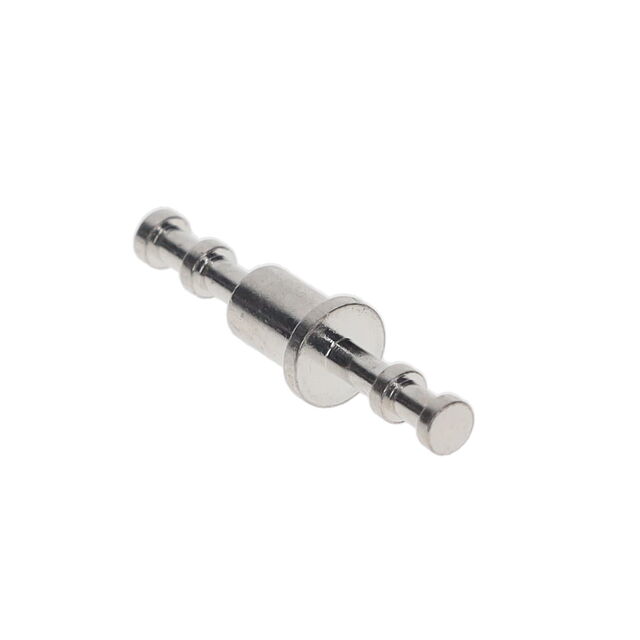

TERM TURRET DOUBLE L=5.56MM
| Part | Number of Turrets | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Flange Diameter | Flange Diameter [diameter] | Board Thickness | Board Thickness | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Material | Insulation | Length - Above Board [x] | Length - Above Board [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Double | Double End | 200 Áin | 5.08 Ám | Tin-Lead | Swage | 3.18 mm | 0.125 in | 0.094 in | 2.39 mm | 1.63 mm | 0.064 in | 7.95 mm | 0.313 in | 2.39 mm | 0.094 " | Through Hole | 0.532 in | 13.51 mm | Brass Alloy | Non-Insulated | 0.219 " | 5.56 mm |
Mill-Max Manufacturing Corp. | Double | Double End | 300 µin | 7.62 µm | Tin-Lead | Swage | 3.18 mm | 0.125 in | 0.094 in | 2.39 mm | 1.63 mm | 0.064 in | 7.95 mm | 0.313 in | 2.39 mm | 0.094 " | Through Hole | 0.532 in | 13.51 mm | Brass Alloy | Non-Insulated | 0.219 " | 5.56 mm |
Mill-Max Manufacturing Corp. | Double | Double End | 200 Áin | 5.08 Ám | Tin | Swage | 3.18 mm | 0.125 in | 0.094 in | 2.39 mm | 1.63 mm | 0.064 in | 7.95 mm | 0.313 in | 2.39 mm | 0.094 " | Through Hole | 0.532 in | 13.51 mm | Brass Alloy | Non-Insulated | 0.219 " | 5.56 mm |
