PM20B04VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

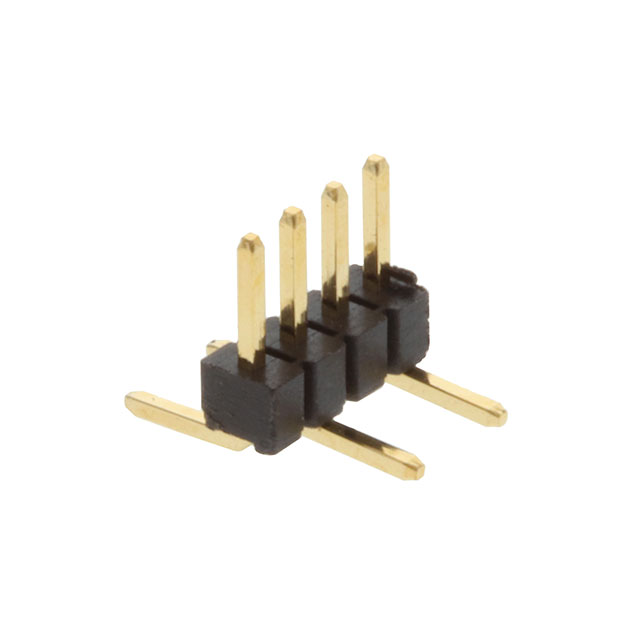

PIN HEADER, SMT, SINGLE ROW, 1.2
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Connector Type | Contact Finish Thickness - Mating | Fastening Type | Insulation Material | Contact Length - Mating | Contact Length - Mating | Contact Shape | Number of Rows | Contact Type | Number of Positions Loaded | Contact Finish - Mating | Shrouding | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Color | Mounting Type | Insulation Height | Insulation Height | Insulation Height [custom] | Insulation Height [custom] | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Zinc | Solder | Header | Flash | Push-Pull | Polyethylene | 2.79 mm | 0.11 in | Square | 1 | Male Pin | All | Gold | Unshrouded | 1.27 mm | 0.05 in | 4 | Black | Surface Mount | 0.059 in | 1.5 mm | |||||
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Copper Alloy | Solder | Header | Flash | Push-Pull | Polyethylene | 2.79 mm | 0.11 in | Square | Male Pin | All | Gold | Unshrouded | 1.27 mm | 0.05 in | 8 | Black | Surface Mount | 0.591 in | 15 mm | 2 | 0.05 in | 1.27 mm |
