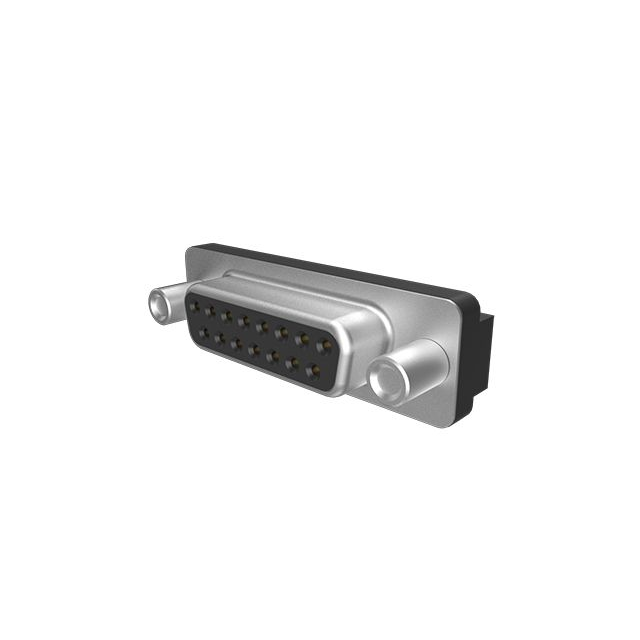

D15P91 Series

Catalog

CONN D-SUB PLUG 15P VERT PRESS

Part	Contact Material	Shell Material, Finish	Dielectric Material	Contact Type	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Number of Rows	Termination	Number of Positions	Mounting Type	Material Flammability Rating	Flange Feature	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	Voltage Rating	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) D15P91C4GV00LF	Phosphor Bronze	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Signal	Flash	Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Board Lock Grounding Indents	300 VDC	2
Amphenol ICC (FCI) D15P91C6PL00LF	Phosphor Bronze	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Signal		Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (M3)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P91C4PL00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal	Flash	Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (M3)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2
Amphenol ICC (FCI) D15P91C4GV00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal	Flash	Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Board Lock Grounding Indents	300 VDC	2
Amphenol ICC (FCI) D15P91C6GX00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal		Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (4-40)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Board Lock Grounding Indents	300 VDC	2	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P91C6GL00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal		Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (M3)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Board Lock Grounding Indents	300 VDC	2	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P91C6PA00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal		Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (Unthreaded)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P91C6PV00LF	Phosphor Bronze	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Signal		Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Female Screwlock (4-40) Mating Side	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2	0.76 Ám	30 Áin
Amphenol ICC (FCI) D15P91C4PA00	Phosphor Bronze		Polybutylene Terephthalate (PBT)	Signal	Flash	Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (Unthreaded)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2
Amphenol ICC (FCI) D15P91C4PX00LF	Phosphor Bronze	Steel Tin-Nickel Plated	Polybutylene Terephthalate (PBT)	Signal	Flash	Gold	5 A	2	Press-Fit	15	Through Hole	UL94 V-0	Housing/Shell (4-40)	Male Pins Plug	D-Sub	-55 °C	125 °C	Black	Grounding Indents	300 VDC	2
