ERA.1E Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 1P GOLD SLDR CUP

Part	Number of Positions	Shell Size - Insert	Contact Material	Mounting Type	Connector Type	Orientation	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Finish	Contact Finish - Mating	Ingress Protection	Fastening Type	Primary Material	Insert Material	Color	Shielding	Mounting Feature	Material Flammability Rating	Center Contact Plating	Body Material	Dielectric Material	Mating Cycles	Body Finish	Includes	Housing Color	Shield Termination	Connector Style	Impedance	Contact Termination	Center Contact Material	Cable Group	Number of Ports

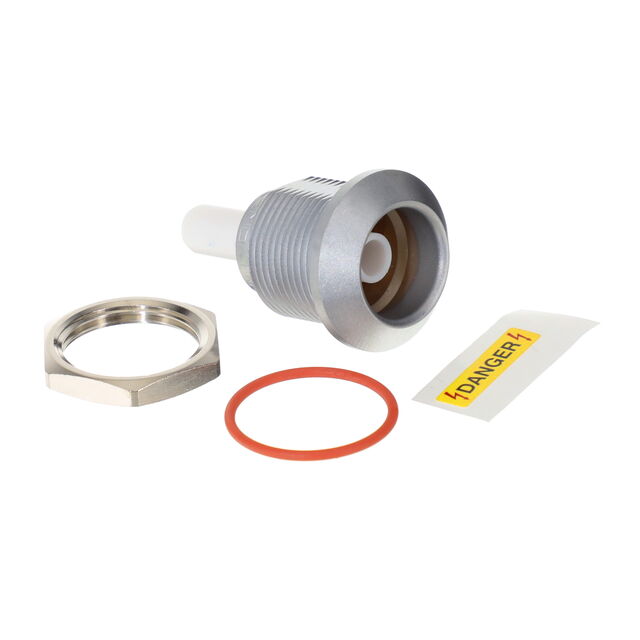

LEMO ERA.1E.405.CTL	1	405	Bronze	Panel Mount	Receptacle Female Sockets	Keyed	8 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polytetrafluoroethylene (PTFE)	Silver	Shielded	Bulkhead - Rear Side Nut
LEMO ERA.1E.302.CLL	2	302	Brass Bronze	Panel Mount	Receptacle Female Sockets and Male Pins	Keyed	15 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polyetheretherketone (PEEK)	Silver	Shielded	Bulkhead - Rear Side Nut	UL94 V-0
LEMO ERA.1E.250.CTN				Panel Mount	Receptacle Female Socket			200 °C	-55 C				IP68 - Dust Tight Waterproof	Push-Pull					Bulkhead - Rear Side Nut		Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	1 Connector 1 Nut	Silver	Solder	Coaxial	50 Ohms	Solder Cup	Beryllium Copper	174 174A 178B 188A 196A 316B RG-122

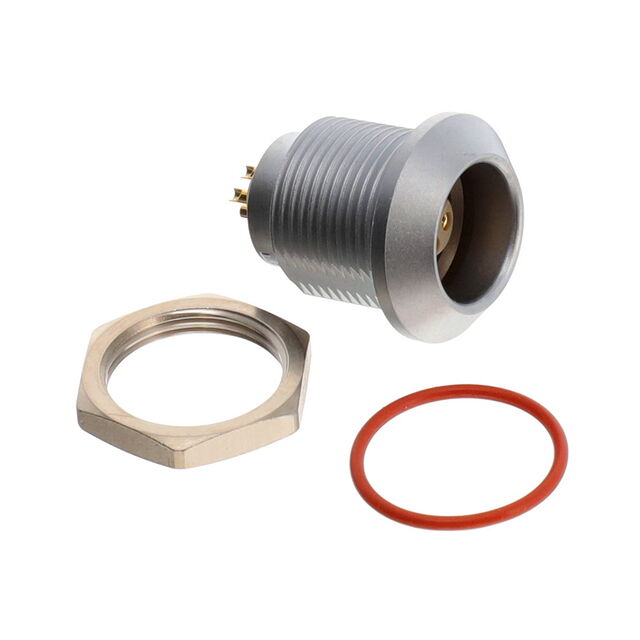

LEMO ERA.1E.304.CLL	4	304	Brass Bronze	Panel Mount	Receptacle Female Sockets and Male Pins	Keyed	10 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polyetheretherketone (PEEK)	Silver	Shielded	Bulkhead - Rear Side Nut	UL94 V-0
LEMO ERA.1E.303.CLL		303	Brass Bronze	Panel Mount	Receptacle Female Sockets and Male Pins	Keyed	10 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polyetheretherketone (PEEK)	Silver	Shielded	Bulkhead - Rear Side Nut	UL94 V-0
LEMO ERA.1E.901.CLK	2	302	Alumel Chromel	Panel Mount	Receptacle Female Sockets and Male Pins	Keyed	15 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polyetheretherketone (PEEK)	Silver	Shielded	Bulkhead - Rear Side Nut	UL94 V-0
LEMO ERA.1E.250.CTL				Panel Mount	Receptacle Female Socket			200 °C	-55 C				IP68 - Dust Tight Waterproof	Push-Pull					Bulkhead - Rear Side Nut		Gold	Brass	Polytetrafluoroethylene (PTFE)	1000	Chrome	1 Connector 1 Nut	Silver	Solder	Coaxial	50 Ohms	Solder Cup	Beryllium Copper	174 174A 178B 188A 196A 316B RG-122	1
LEMO ERA.1E.305.CLL	5	305	Brass Bronze	Panel Mount	Receptacle Female Sockets and Male Pins	Keyed	7 A 10 A	200 °C	-55 C	Brass	Chrome	Gold	IP66 IP68	Push-Pull	Metal	Polyetheretherketone (PEEK)	Silver	Shielded	Bulkhead - Rear Side Nut	UL94 V-0
