3117 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

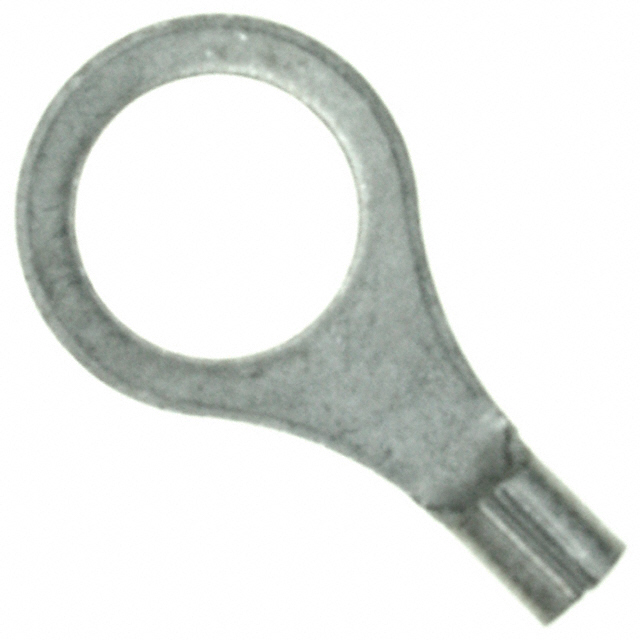

CONN RING CIRC 16-22AWG #5/16
| Part | Mounting Type | Thickness | Thickness | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Contact Finish | Terminal Type | Termination | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall | Length - Overall [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 0.031 in | 0.79 mm | Non-Insulated | 11.91 mm | 0.469 in | Copper | Tin | Circular | Crimp | 0.3125 Stud | 22 AWG | 16 AWG | 21.74 mm | 0.856 " | Serrated Termination |
