074320 Series
Manufacturer: Molex
Beta
⌘K

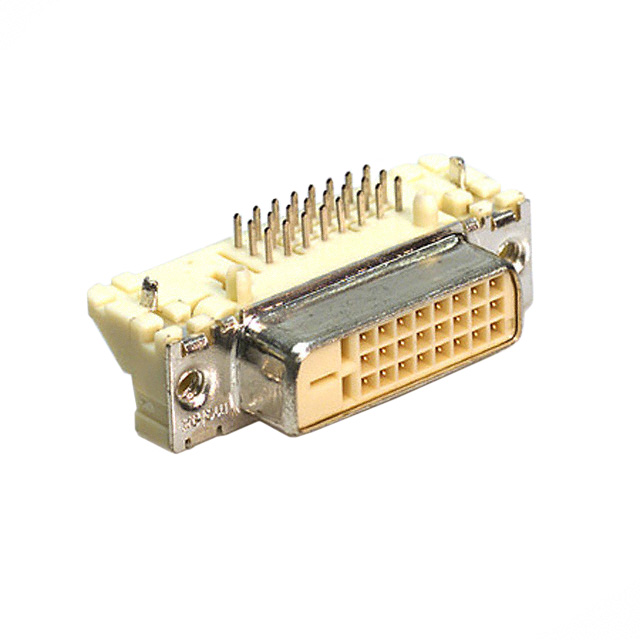

CONN RCPT DVI-D DL 24POS PCB R/A
| Part | Contact Finish | Mounting Feature | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Ports | Current Rating (Amps) | Insulation Color | Number of Contacts | Voltage - Rated | Shell/Shielding Material | Material Flammability Rating | Termination | Shielding | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Panel Mount Right Angle Through Hole | |
Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | UL94 V-0 | Solder | Shielded | Through Hole Right Angle | Board Guide | |
Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-I Dual Link | 1 | 3 A | Natural | 29 | 40 VAC | UL94 V-0 | Solder | Shielded | Through Hole Right Angle | Board Guide | |
Molex | Gold | Flange Vertical | Receptacle | 85 °C | -20 C | DVI-A | 1 | 3 A | Natural | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Through Hole | ||
Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-A | 1 | 3 A | Natural | 40 VAC | Copper | UL94 V-0 | Solder | Shielded | Panel Mount Right Angle Through Hole | Board Guide | |
 Molex | Gold | Flange Vertical | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Panel Mount Through Hole | Board Guide |
Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Panel Mount Right Angle Through Hole | Board Guide Board Lock |
Molex | Gold | Flange Vertical | Receptacle | 85 °C | -20 C | DVI-A | 1 | 3 A | Natural | 12 | 40 VAC | Copper | UL94 V-0 | Solder | Shielded | Panel Mount Through Hole | Board Guide |
 Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Panel Mount Right Angle Through Hole | Board Guide |
 Molex | Gold | Flange Horizontal | Receptacle | 85 °C | -20 C | DVI-D Dual Link | 1 | 3 A | Natural | 24 | 40 VAC | Steel | UL94 V-0 | Solder | Shielded | Panel Mount Right Angle Through Hole | Board Guide |
