305-028 Series
Manufacturer: EDAC Inc.
Beta
⌘K

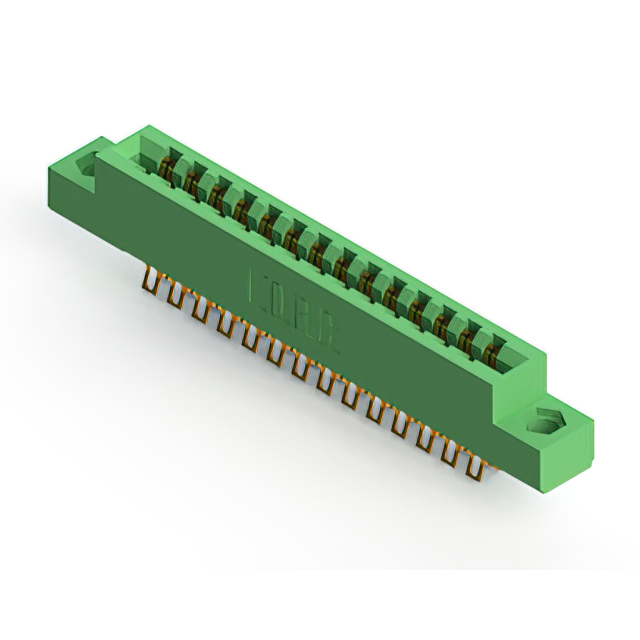

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Contact Material | Contact Type | Number of Rows [custom] | Read Out | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Features | Gender | Termination | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 14 | Non Specified - Dual Edge |
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 14 | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Panel Mount Through Hole | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 14 | Non Specified - Dual Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 14 | Non Specified - Dual Edge |
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 14 | Non Specified - Dual Edge |
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Flush Mount M3 Threaded Insert Top Opening | 14 | Non Specified - Dual Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender Card Guides | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 14 | Non Specified - Dual Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 14 | Non Specified - Dual Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Extender | Female | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 14 | Non Specified - Dual Edge |
 EDAC Inc. | Polyester Thermoplastic | 2 | Free Hanging (In-Line) | Copper Alloy | Semi Bellows | 2 | Dual | 28 | Green | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Female | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 14 | Non Specified - Dual Edge |
