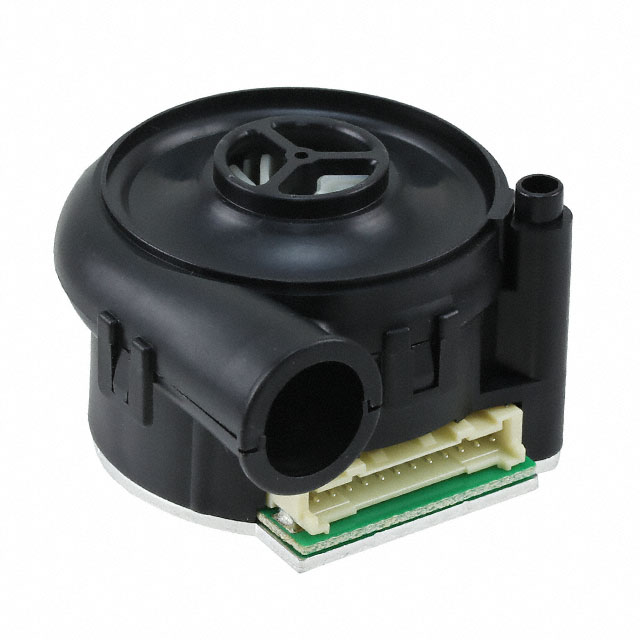

TF037F Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS MICRO BLOWER, 45K R/MIN, 2 KPA, 72 GRAMS
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Air Flow | Air Flow | Voltage - Rated | Fan Type | Static Pressure | Static Pressure | Power (Watts) | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Noise | RPM | Termination | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 12 VDC | 24 V | 0.67 A | 0.098 mł/min | 3.5 CFM | 24 VDC | Blower Centrifugal | 2000 Pa | 8.03 in H2O | 16.1 W | Aerodynamic | 50.5 mm | 53.8 mm | Rectangular/Rounded | 50 °C | 0 °C | 0 °C | 50 °C | 65 dB | 31000 RPM | 12 Position Rectangular Connector | 72.12 g | 0.159 lb |
