896-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Features	Contact Type	Number of Rows [custom]	Number of Positions	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Color	Gender	Contact Material	Contact Finish	Pitch	Pitch	Flange Feature
EDAC Inc. 896-094-560-802	2	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual	Card Extender	Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in
EDAC Inc. 896-094-556-207	2	Polyphenylene Sulfide (PPS)			Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual	Card Extender	Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening

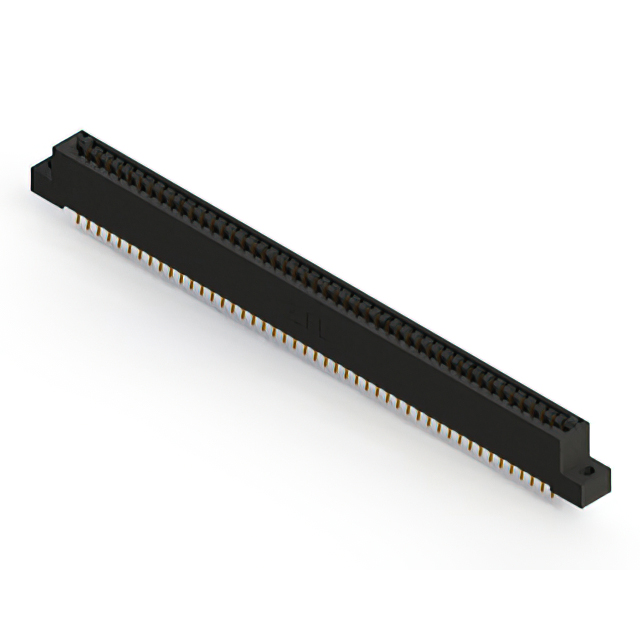

EDAC Inc. 896-094-556-204	2	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual	Card Extender	Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 896-094-558-204	2	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual		Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 896-094-556-812	2	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual	Card Extender	Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Side Mount Opening Unthreaded
EDAC Inc. 896-094-558-208	2	Polyphenylene Sulfide (PPS)			Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual		Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 896-094-555-203	2	Polyphenylene Sulfide (PPS)	2.95 mm	0.116 "	Solder Eyelet(s)	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual	Card Extender	Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Floating Bobbin Flush Mount
EDAC Inc. 896-094-558-802	2	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual		Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in
EDAC Inc. 896-094-558-812	2	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "	Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual		Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	Side Mount Opening Unthreaded
EDAC Inc. 896-094-559-807	2	Polyphenylene Sulfide (PPS)			Solder	Non Specified - Dual Edge	0.25 Ám	10 Áin	125 °C	-40 C	Dual		Cantilever	2	94	47	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Black	Female	Copper Alloy	Gold	3.18 mm	0.125 in	M3 Threaded Insert Top Mount Opening
