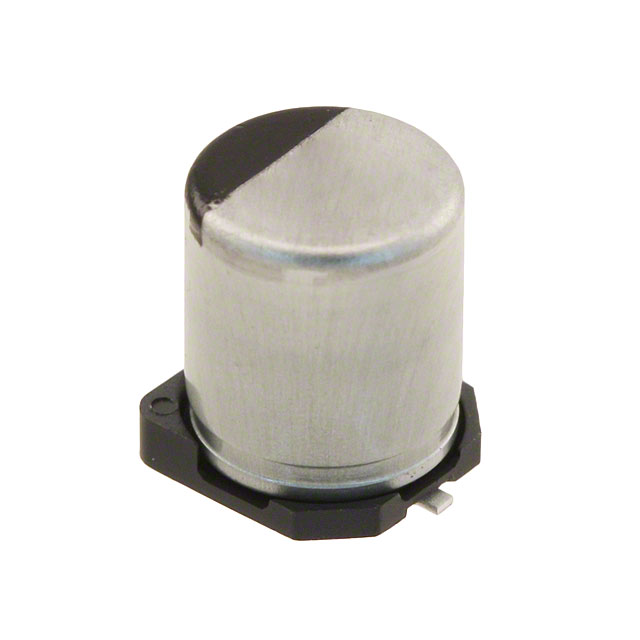

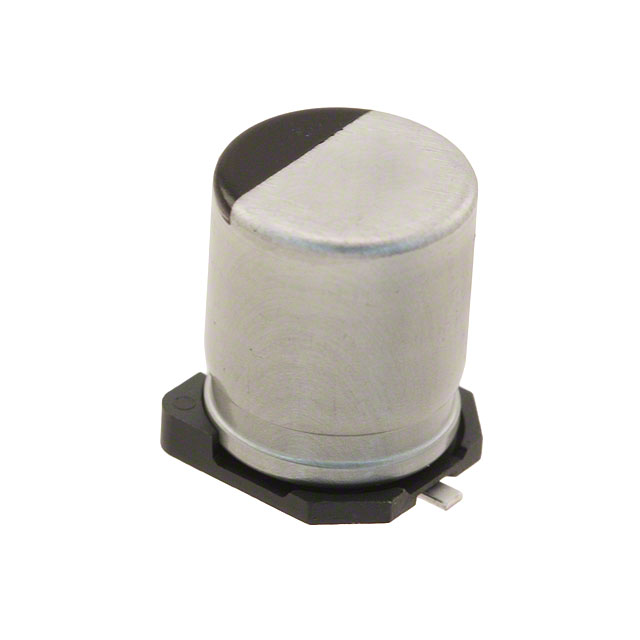

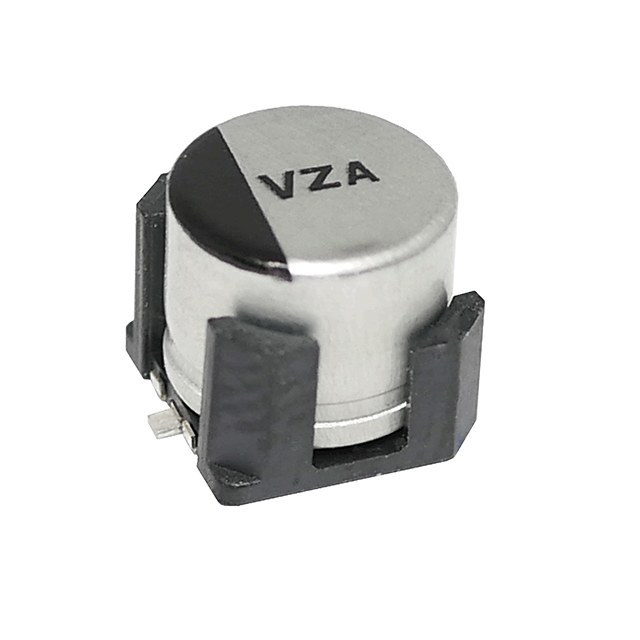

EEH-ZA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYBRID 82UF 20% 63V SMD

Part	Package / Case	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Mounting Type	Ratings	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEH-ZA1J820V	Radial Can - SMD	Hybrid	10 mm	0.394 in	Automotive	20 %	0.425 in	10.8 mm	30 mOhms	10000 Hrs	1.8 A	105 ░C	-55 °C	270 mA	Surface Mount	AEC-Q200	63 V	10.3 mm	0.406 in	10.3 mm	0.406 "	82 µF
Panasonic Industrial Automation Sales EEH-ZA1V680XP	Radial Can - SMD	Hybrid	6.3 mm	0.248 in	Automotive	20 %			35 mOhms	10000 Hrs	2 A	105 ░C	-55 °C	300 mA	Surface Mount	AEC-Q200	35 V	6.6 mm	0.26 in	6.6 mm	0.26 in	68 µF	8 mm	0.315 in
Panasonic Industrial Automation Sales EEH-ZA1E101XV	Radial Can - SMD	Hybrid	6.3 mm	0.248 in	Automotive	20 %			30 mOhms	10000 Hrs	2 A	105 ░C	-55 °C	300 mA	Surface Mount	AEC-Q200	25 VDC	6.6 mm	0.26 in	6.6 mm	0.26 in	100 µF	8 mm	0.315 in
Panasonic Industrial Automation Sales EEH-ZA1V101P	Radial Can - SMD	Hybrid	8 mm	0.315 "	Automotive	20 %	0.413 in	10.5 mm	27 mOhms	10000 Hrs	2.3 A	105 ░C	-55 °C	345 mA	Surface Mount	AEC-Q200	35 V	8.3 mm	0.327 "	8.3 mm	0.327 in	100 µF
Panasonic Industrial Automation Sales EEH-ZA1V470V	Radial Can - SMD	Hybrid	6.3 mm	0.248 in	Automotive	20 %	0.217 in	5.5 mm	60 mOhms	10000 Hrs		105 ░C	-55 °C	195 mA	Surface Mount	AEC-Q200	35 V	6.6 mm	0.26 in	6.6 mm	0.26 in	47 µF
Panasonic Industrial Automation Sales EEH-ZA1H100R	Radial Can - SMD	Hybrid	5 mm	0.197 "	Automotive	20 %			120 mOhm	10000 Hrs	750 mA	105 ░C	-55 °C	75 mA	Surface Mount	AEC-Q200	50 VDC	5.3 mm	0.209 in	5.3 mm	0.209 in	10 µF	6.1 mm	0.24 in
Panasonic Industrial Automation Sales EEH-ZA1J560P	Radial Can - SMD	Hybrid	10 mm	0.394 in	Automotive	20 %	0.413 in	10.5 mm	30 mOhms	10000 Hrs	1.8 A	105 ░C	-55 °C	270 mA	Surface Mount	AEC-Q200	63 V	10.3 mm	0.406 in	10.3 mm	0.406 "	56 µF
Panasonic Industrial Automation Sales EEH-ZA1V330V	Radial Can - SMD	Hybrid	6.3 mm	0.248 in	Automotive	20 %		6.4 mm	60 mOhms	10000 Hrs		105 ░C	-55 °C	130 mA	Surface Mount	AEC-Q200	35 V	6.6 mm	0.26 in	6.6 mm	0.26 in	33 ÁF		0.252 "
Panasonic Industrial Automation Sales EEH-ZA1K330V	Radial Can - SMD	Hybrid	10 mm	0.394 in	Automotive	20 %	0.413 in	10.5 mm	36 mOhms	10000 Hrs	1.7 A	105 ░C	-55 °C	170 mA	Surface Mount	AEC-Q200	80 V	10.3 mm	0.406 in	10.3 mm	0.406 "	33 ÁF
Panasonic Industrial Automation Sales EEH-ZA1E560V	Radial Can - SMD	Hybrid	6.3 mm	0.248 in	Automotive	20 %	0.217 in	5.5 mm	50 mOhms	10000 Hrs		105 ░C	-55 °C	195 mA	Surface Mount	AEC-Q200	25 VDC	6.6 mm	0.26 in	6.6 mm	0.26 in	56 µF
