126-00 Series

Catalog

CBL TIE LOCKING BLACK 50LB 6.10"

Part	Length - Approximate	Features	Tensile Strength	Tensile Strength	Mounting Type	Width [x]	Width [x]	Length - Actual [x]	Length - Actual	Length - Actual	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Material	Color	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Length - Approximate [x]	Length - Actual	Width [y]	Width [y]	Tensile Strength	Width	Width

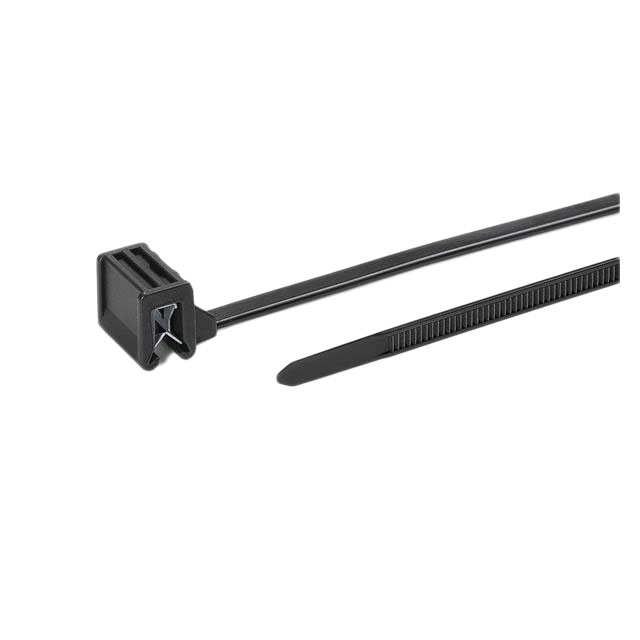

HELLERMANNTYTON 126-00426	6 in	Heat Stabilized	22.68 kg	50 lbs	Edge Clip	4.6 mm	0.181 in	0.509 ft	6.1 "	155 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Black	Locking Standard

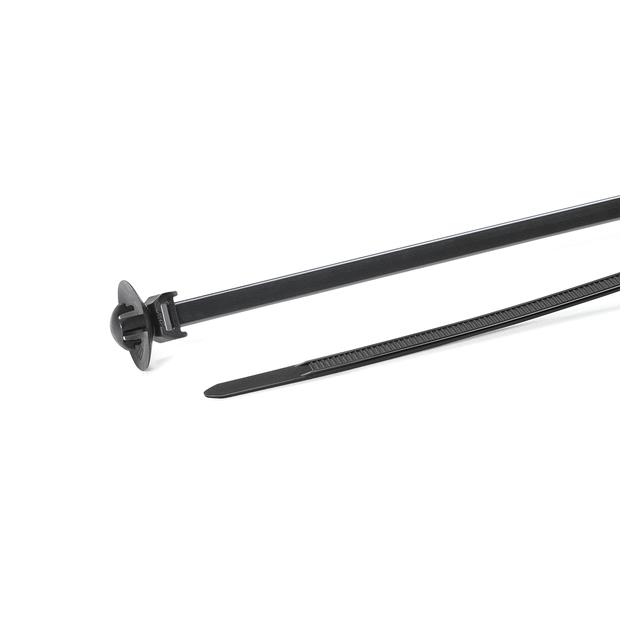

HELLERMANNTYTON 126-00081		Heat Stabilized	18.14 kg	40 lbs	Cupped Arrowhead Push Mount	4.6 mm	0.181 in	0.513 ft			35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Black	Locking Standard	156.5 mm	6.16 in	6.25 "

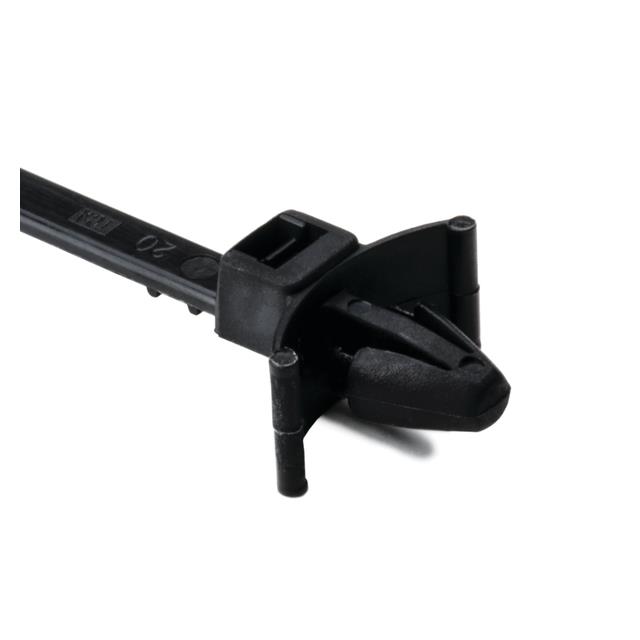

HELLERMANNTYTON 126-00005	6.5 in	Heat Stabilized Impact Modified	22.68 kg	50 lbs	Push Mount Winged Arrowhead	4.6 mm	0.181 in		6.42 "	163 mm	34 mm	1.34 in	Polyamide (PA66) Nylon 6/6	Black	Locking Standard				0.535 ft
HELLERMANNTYTON 126-00046			22.68 kg	50 lbs	Arrowhead Push Mount			0.522 ft	6.26 in	159 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Black	Locking Standard			6.25 "		0.185 in	4.7 mm

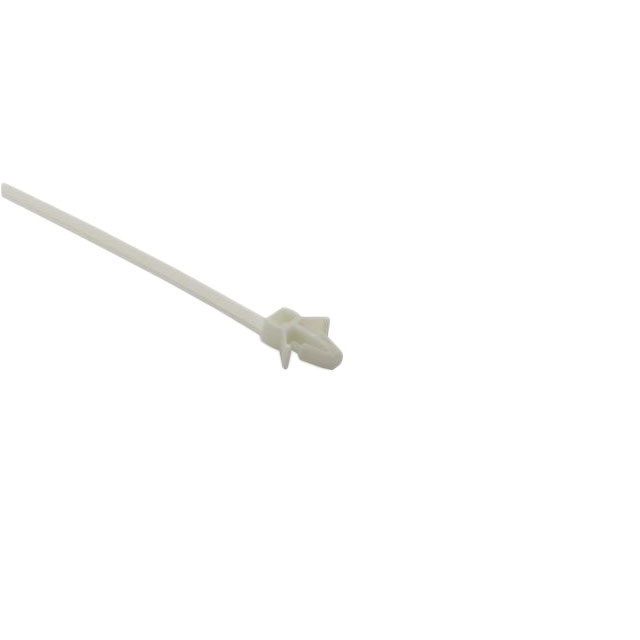

HELLERMANNTYTON 126-00069			22.68 kg	50 lbs	Push Mount Winged Arrowhead				6.3 in	160 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Natural	Locking Standard			6.25 "	0.525 ft	0.185 in	4.7 mm

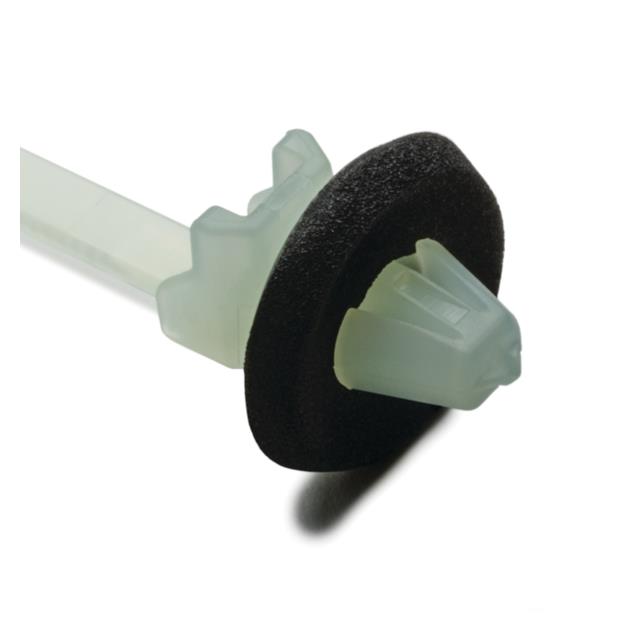

HELLERMANNTYTON 126-00065	6.5 in	Heat Stabilized	18.14 kg	40 lbs	Cupped Arrowhead Push Mount	4.6 mm	0.181 in		6.42 "	163 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Natural	Locking Standard				0.535 ft
HELLERMANNTYTON 126-00044			22.68 kg	50 lbs	Arrowhead Push Mount			0.522 ft	6.26 in	159 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Natural	Locking Standard			6.25 "		0.185 in	4.7 mm
HELLERMANNTYTON 126-00062			33 lbs		Push In - Arrowhead Winged	5 mm	0.197 in	0.623 '			40 mm	1.57 in	Nylon 4/6 Polyamide (PA46)	Natural	Locking Standard	190 mm	7.48 "	7.5 in				14.97 kg

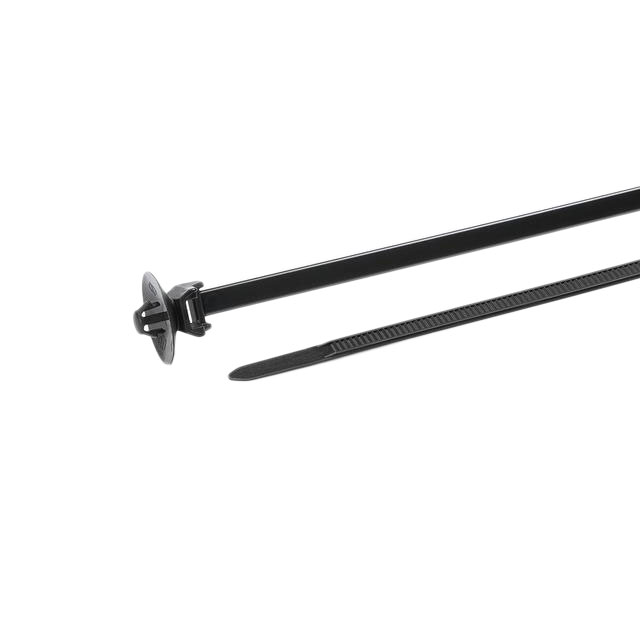

HELLERMANNTYTON 126-00099		Heat Stabilized	18.14 kg	40 lbs	Cupped Arrowhead Push Mount	4.6 mm	0.181 in	0.512 ft	6.14 in	156 mm	35 mm	1.38 in	Polyamide (PA66) Nylon 6/6	Black	Locking Standard			6.25 "
HELLERMANNTYTON 126-00114	8.5 in	Heat Stabilized Impact Modified	22.68 kg	50 lbs	Cupped Arrowhead Push Mount			0.708 ft			50 mm	1.97 in	Polyamide (PA66) Nylon 6/6	Natural	Locking Standard	215.9 mm	8.5 in						0.2 in	0.2 in
