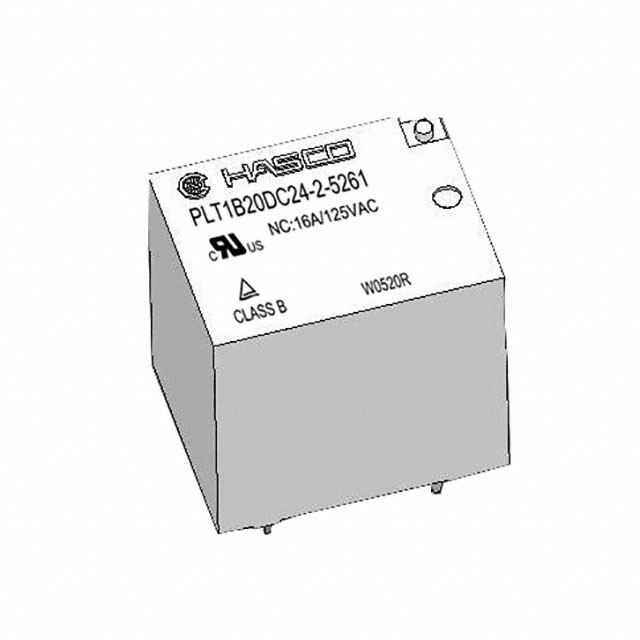

PLT1B Series
Manufacturer: Hasco Relays
Beta
⌘K
RELAY SPST 20A 24V
| Part | Operate Time | Must Operate Voltage | Must Release Voltage | Coil Type | Contact Material | Contact Rating (Current) | Switching Voltage [Max] | Coil Voltage | Mounting Type | Termination Style | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Coil Insulation | Contact Form | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hasco Relays | 10 ms | 18 VDC | 2.4 VDC | Non Latching | Silver Alloy | 20 A | 277 VAC | 24 VDC | Through Hole | PC Pin | 0.015 A | 85 °C | -40 C | Class B | SPST-NC (1 Form B) | 5 ms |
