TG-A1780 Series

Catalog

THERM PAD 20MMX20MM GRAY

Part	Shelf Life	Material	Type	Shape	Outline [x]	Outline [y]	Color	Thermal Conductivity	Thickness	Thickness	Usage

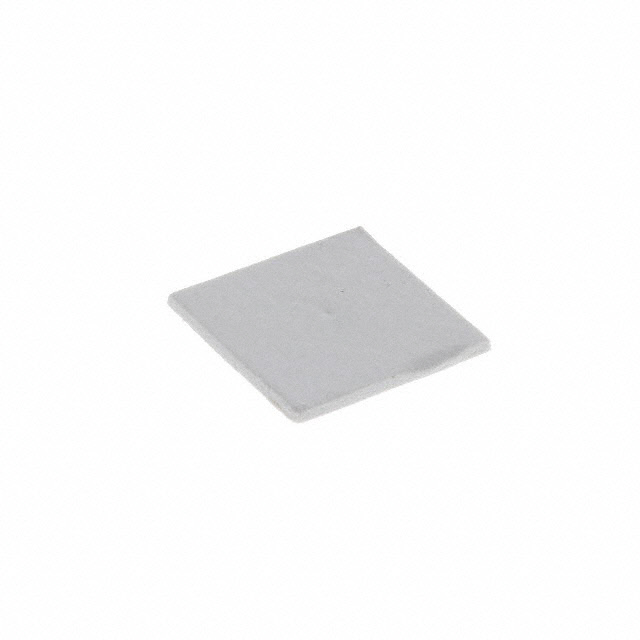

t-Global Technology TG-A1780-20-20-1.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	20 mm	20 mm	Gray	17.8 W/m-K	1.5 mm	0.0591 "	Multi
t-Global Technology TG-A1780-30-30-0.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	30 mm	30 mm	Gray	17.8 W/m-K	0.5 mm	0.0197 "	Multi
t-Global Technology TG-A1780-20-20-2.0	24 Months	Silicone	Gap Filler Pad Sheet	Square	20 mm	20 mm	Gray	17.8 W/m-K	2 mm	0.079 in	Multi
t-Global Technology TG-A1780-40-40-0.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	40 mm	40 mm	Gray	17.8 W/m-K	0.5 mm	0.0197 "	Multi

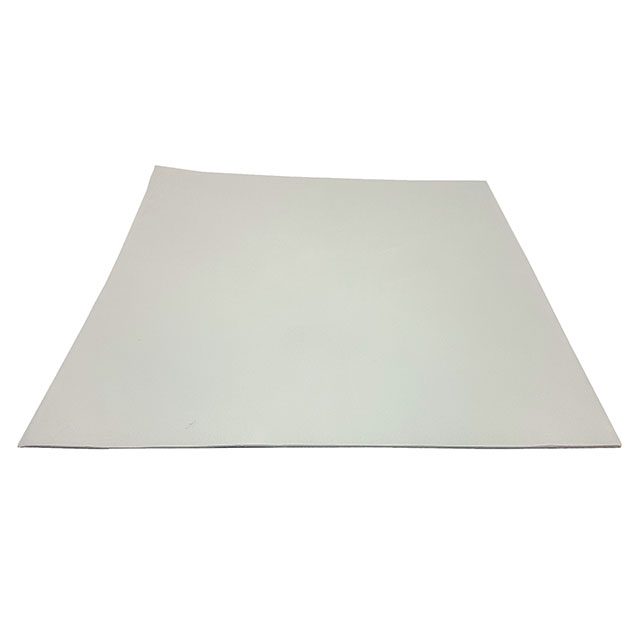

t-Global Technology TG-A1780-150-150-0.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	150 mm	150 mm	Gray	17.8 W/m-K	0.5 mm	0.0197 "	Multi

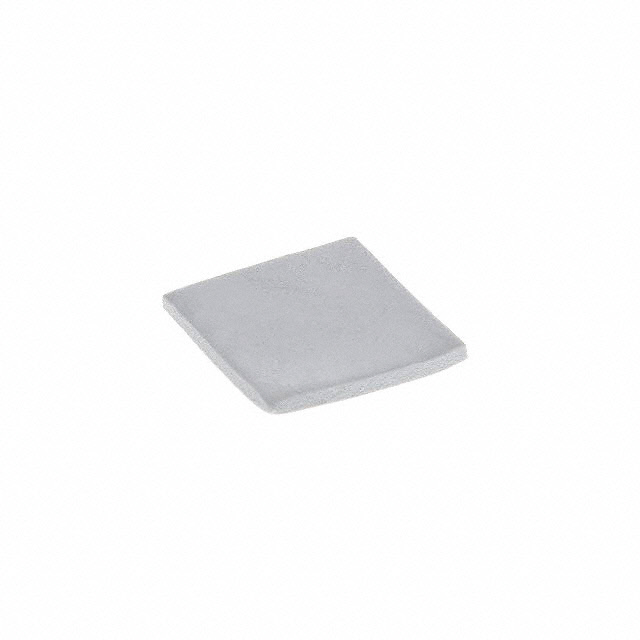

t-Global Technology TG-A1780-15-15-1.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	15 mm	15 mm	Gray	17.8 W/m-K	1.5 mm	0.0591 "	Multi
t-Global Technology TG-A1780-5-5-0.5	24 Months	Silicone	Gap Filler Pad Sheet	Square	5 mm	5 mm	Gray	17.8 W/m-K	0.5 mm	0.0197 "	Multi
t-Global Technology TG-A1780-30-30-2.0	24 Months	Silicone	Gap Filler Pad Sheet	Square	30 mm	30 mm	Gray	17.8 W/m-K	2 mm	0.079 in	Multi
t-Global Technology TG-A1780-30-30-1.0	24 Months	Silicone	Gap Filler Pad Sheet	Square	30 mm	30 mm	Gray	17.8 W/m-K	1 mm	0.0394 "	Multi

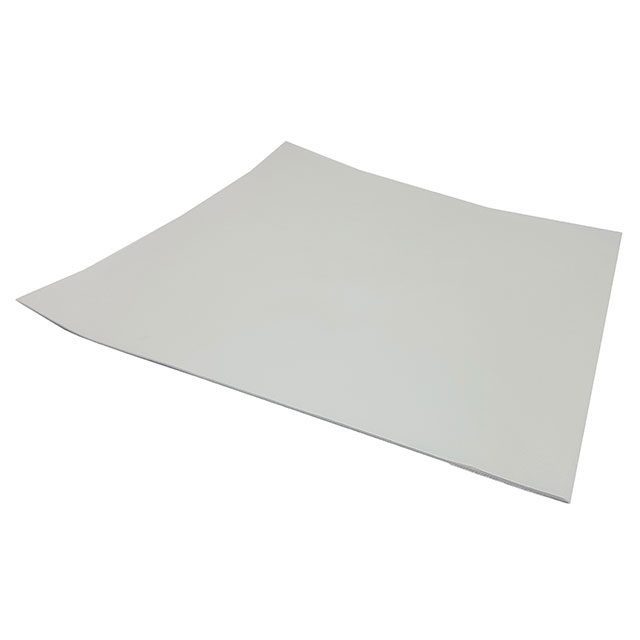

t-Global Technology TG-A1780-150-150-2.0	24 Months	Silicone	Gap Filler Pad Sheet	Square	150 mm	150 mm	Gray	17.8 W/m-K	2 mm	0.079 in	Multi
