VI04 Series

Catalog

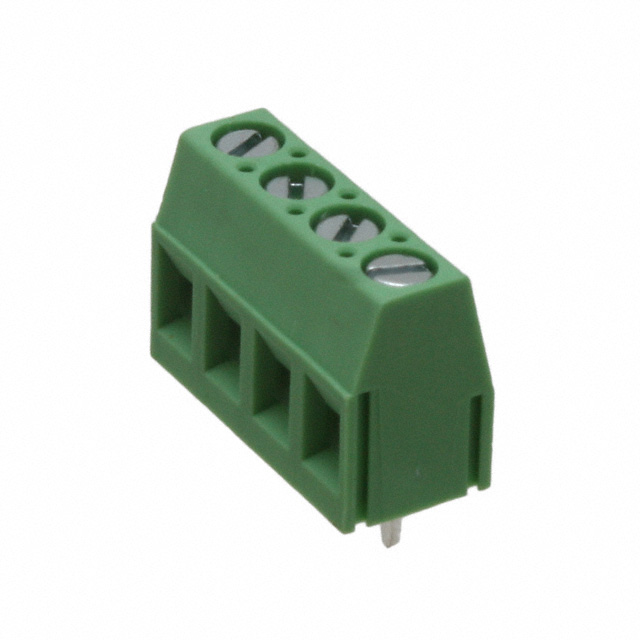

TERM BLK 4POS TOP ENT 5.08MM PCB

Part	Clamp Material - Plating	Number of Levels	Wire Termination	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mating Orientation	Color	Screw Material - Plating	Current	Positions Per Level	Voltage	Housing Material	Wire Gauge [Min]	Wire Gauge [Max]	Torque - Screw	Torque - Screw	Features	Mounting Type	Contact Material - Plating
Amphenol Anytek VI0421530000G	Brass - Nickel Plated	1	Screw - Rising Cage Clamp	M3	-40 °C	115 °C	0.2 in	5.08 mm	Vertical with Board	Green	Steel Zinc Plated	16 A	4	300 V	Thermoplastic	12 AWG	28 AWG	0.4 Nm	3.5 Lb-In	Interlocking (Side)	Through Hole
Amphenol Anytek VI042152006FG		1	Screw - Rising Cage Clamp				0.2 in	5.08 mm		Green			4								Through Hole
Amphenol Anytek VI0401550000G	Copper Alloy - Nickel Plated	1	Screw - Rising Cage Clamp	M3	-40 °C	115 °C	0.197 in	5 mm	Horizontal with Board	Green	Steel Zinc Plated	16 A	4	300 V	Thermoplastic	12 AWG	28 AWG	0.4 Nm	3.5 Lb-In	Interlocking (Side)	Through Hole	Copper Alloy - Tin Plated
Amphenol Anytek VI0441500000G	Brass - Nickel Plated	1	Screw - Rising Cage Clamp	M3	-40 °C	115 °C	0.295 in	7.5 mm	Vertical with Board	Green	Steel Zinc Plated	16 A	4	300 V	Thermoplastic	12 AWG	28 AWG	0.4 Nm	3.5 Lb-In	Interlocking (Side)	Through Hole
Amphenol Anytek VI0421500000G	Brass - Nickel Plated	1	Screw - Rising Cage Clamp	M3	-40 °C	115 °C	0.2 in	5.08 mm	Vertical with Board	Green	Steel Zinc Plated	16 A	4	300 V	Thermoplastic	12 AWG	28 AWG	0.4 Nm	3.5 Lb-In	Interlocking (Side)	Through Hole
Amphenol Anytek VI0401500000G	Brass - Nickel Plated	1	Screw - Rising Cage Clamp	M3	-40 °C	115 °C	0.197 in	5 mm	Vertical with Board	Green	Steel Zinc Plated	16 A	4	300 V	Thermoplastic	12 AWG	28 AWG	0.4 Nm	3.5 Lb-In	Interlocking (Side)	Through Hole
