ALM07FD17 Series
Manufacturer: Amphenol Industrial Operations
Beta
⌘K
CONN RCPT FMALE 8POS GOLD CRIMP
| Part | Material Flammability Rating | Shielding | Termination | Shell Finish | Applications | Connector Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Insert Material | Shell Material | Orientation | Color | Current Rating (Amps) | Ingress Protection | Primary Material | Number of Positions | Mounting Feature | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

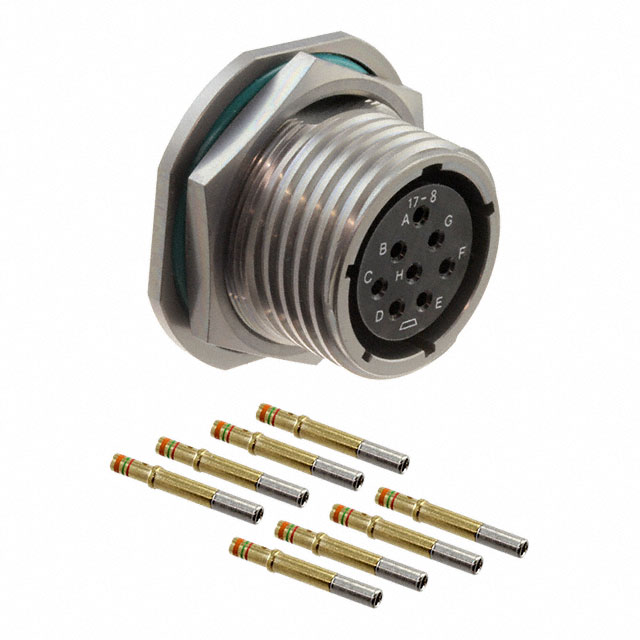

 Amphenol Industrial Operations | UL94 V-0 | Shielded | Crimp | Gray Zinc Nickel | Aviation | Receptacle Female Sockets | Gold | 125 °C | -65 ░C | 17-8 | Silicon Rubber | Composite | N | Gray | 13 A | IP67 - Dust Tight Waterproof | Composite | 8 | Bulkhead - Front Side Nut | ||

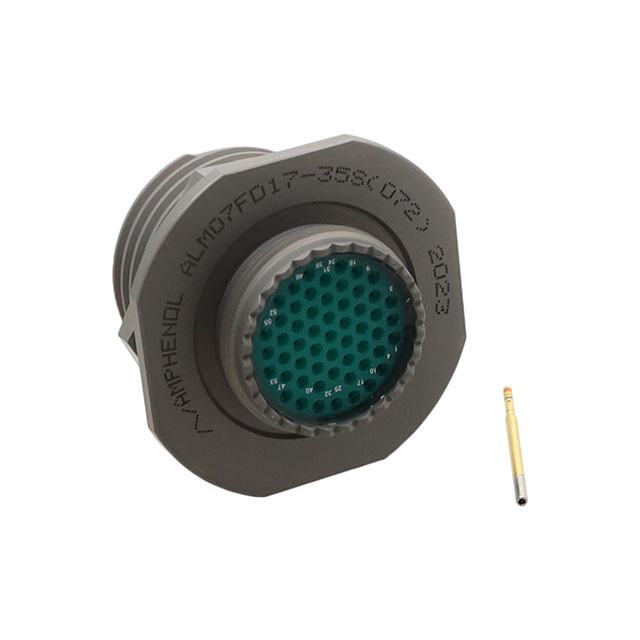

 Amphenol Industrial Operations | UL94 V-0 | Shielded | Crimp | Gray Zinc Nickel | Aviation | Receptacle Female Sockets | Gold | 125 °C | -65 ░C | Silicon Rubber | Composite | N | Gray | 13 A | IP67 - Dust Tight Waterproof | Composite | 55 positions | Bulkhead - Front Side Nut | 17 | 35 |
