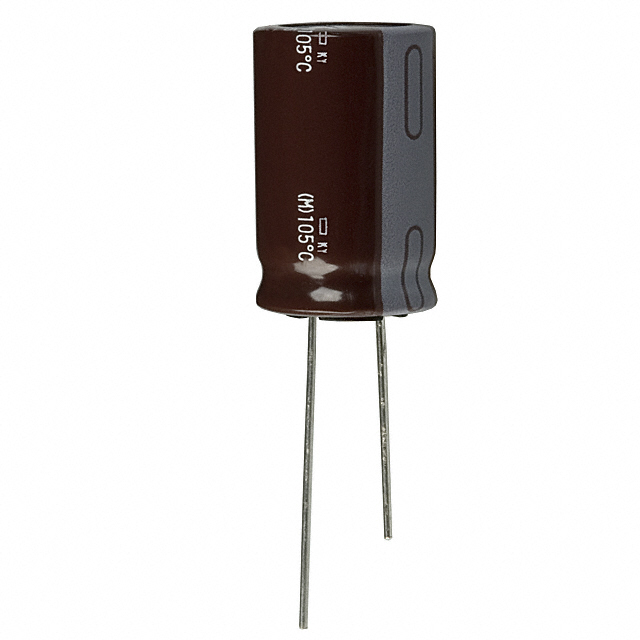

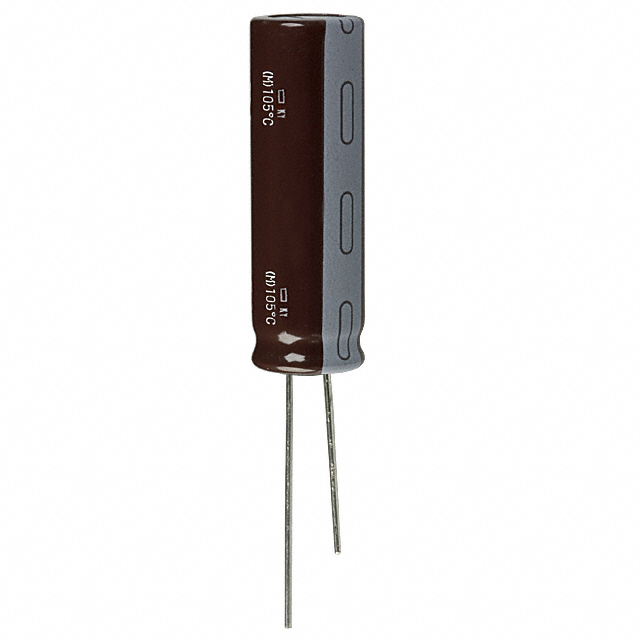

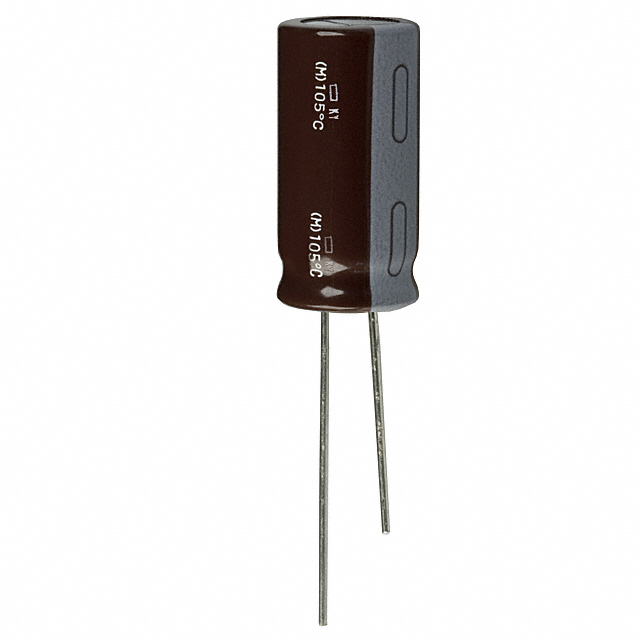

EKY-800E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 560UF 20% 80V RADIAL TH

Part	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Impedance	Tolerance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Package / Case	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-800ELL561MK40S	10000 Hrs	0.492 in	12.5 mm	Polar	32 mOhms	20 %	1.8 A	900 mA	1.634 in	41.5 mm	0.197 "	5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	560 µF	80 V
Chemi-Con EKY-800ELL681MM25S	10000 Hrs	0.709 in	18 mm	Polar	36 mOhms	20 %	1.75 A	1.05 A			0.295 in	7.5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	680 µF	80 V	26.5 mm	1.043 in
Chemi-Con EKY-800ELL151MJ25S	7000 Hrs	0.394 in	10 mm	Polar	69 mOhms	20 %	900 mA	360 mA			0.197 "	5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	150 µF	80 V	26.5 mm	1.043 in
Chemi-Con EKY-800ETD151MJ25S	7000 Hrs	0.394 in	10 mm	Polar	69 mOhms	20 %	900 mA	360 mA			0.197 "	5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	150 µF	80 V	26.5 mm	1.043 in
Chemi-Con EKY-800ETS801MM25S		0.709 in	18 mm	Polar		20 %					0.295 in	7.5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	800 µF	80 V	26.5 mm	1.043 in
Chemi-Con EKY-800ELL122MM40S	10000 Hrs	0.709 in	18 mm	Polar	26 mOhms	20 %	2.7 A	1.62 A	1.634 in	41.5 mm	0.295 in	7.5 mm	-40 C	105 ░C	Through Hole	General Purpose	Can Radial	1.2 mF	80 V
