966658 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 32POS 2.54MM

Part	Applications	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Type	Fastening Type	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Shape	Features	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Shrouding	Contact Finish - Mating
TE Connectivity AMP Connectors 2-966658-2	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Blue	Polyphthalamide (PPA) Glass Filled	Male Pin	Latch Holder	2	13.21 mm	0.52 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall

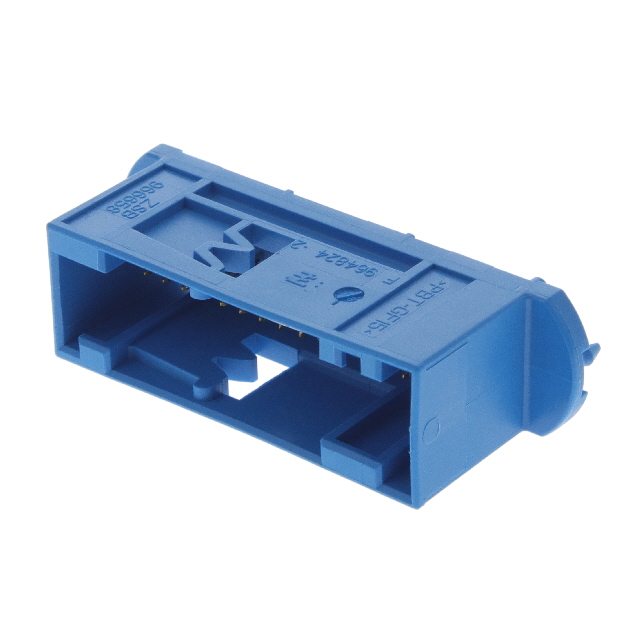

TE Connectivity AMP Connectors 966658-2	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Blue	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2	13.21 mm	0.52 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall
TE Connectivity AMP Connectors 9-966658-9	Automotive	Copper Alloy	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Violet	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2			Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	31.5 µin	0.8 µm	Board to Board Cable	Shrouded - 4 Wall	Gold

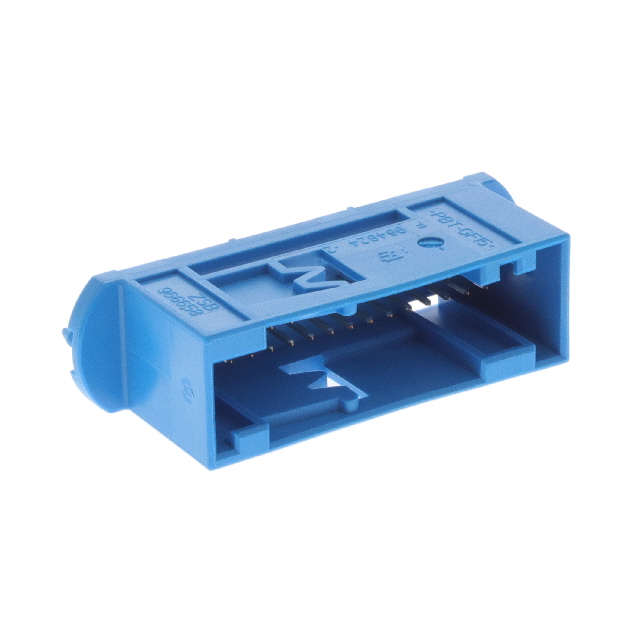

TE Connectivity AMP Connectors 1-966658-2	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Blue	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2	12.7 mm	0.5 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall
TE Connectivity AMP Connectors 3-966658-2	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Blue	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2	13.21 mm	0.52 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall
TE Connectivity AMP Connectors 3-966658-1	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Green	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2	13.21 mm	0.52 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall
TE Connectivity AMP Connectors 966658-3	Automotive	Brass	Solder	0.1 "	2.54 mm	Tin	Header	20.2 mm	0.795 in	0.268 in	6.8 mm	All	Gray	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Latch Holder	2	13.21 mm	0.52 in	Through Hole	-40 C	110 °C	2.5 mm	0.098 in	Square	Board Lock	12 VDC	0.1 in	2.54 mm	78.7 µin	2 µm	Board to Board Cable	Shrouded - 4 Wall
