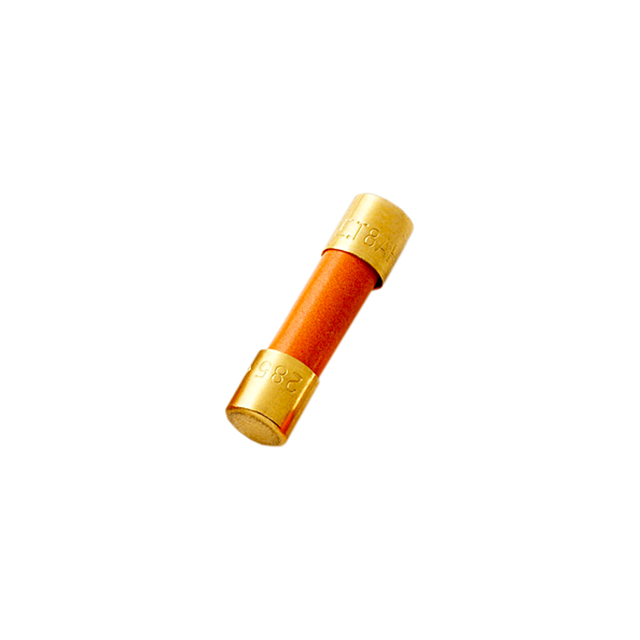

FUSE 250V 5X20 PB-FREE .315A
Description
AI
Ideal for supplementary protection in appliance or utilization equipment, especially in audio and medical equipment.
Beta
⌘K
FUSE 250V 5X20 PB-FREE .315A
FUSE 250V 5X20 PB-FREE .315A
| Part | Melting I˛t | DC Cold Resistance | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Package / Case [x] | Package / Case [y] | Current Rating (Amps) | Mounting Type | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1.1 | 0.9275 Ohms | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Slow Blow | Cartridge Ceramic | -55 C | 125 °C | 1.5 kA | 250 V | 5 mm | 20 mm | 0.315 A | Requires Holder | 1.1 |
LITTELFUSE | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Slow Blow | Cartridge Ceramic | -55 C | 125 °C | 1.5 kA | 250 V | 5 mm | 20 mm | 0.315 A | Requires Holder | 1.1 | ||
 LITTELFUSE | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Slow Blow | Cartridge Ceramic | -55 C | 125 °C | 1.5 kA | 250 V | 5 mm | 20 mm | 0.315 A | Requires Holder | 1.1 | ||
LITTELFUSE | 1.1 | 0.9275 Ohms | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Slow Blow | Cartridge Ceramic | -55 C | 125 °C | 1.5 kA | 250 V | 5 mm | 20 mm | 0.315 A | Requires Holder | 1.1 |
