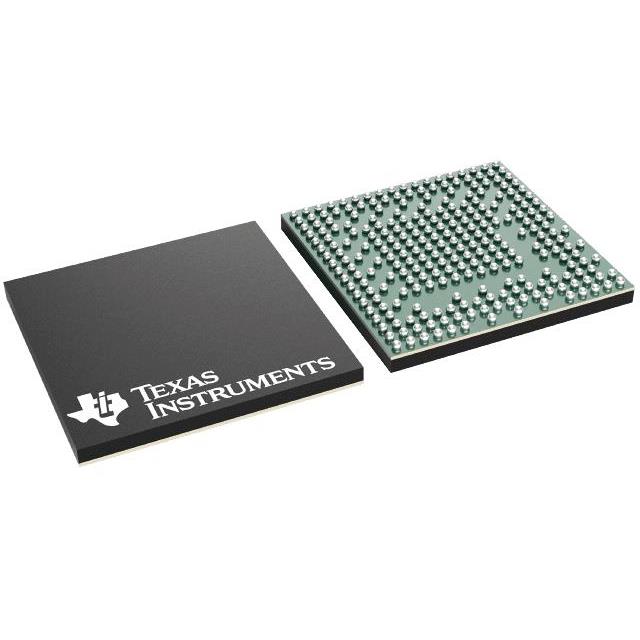

AWR2944 Series
Automotive, second-generation 76-GHz to 81-GHz high-performance SoC for corner and long-range radar
Manufacturer: Texas Instruments
Catalog
Automotive, second-generation 76-GHz to 81-GHz high-performance SoC for corner and long-range radar
Key Features
• FMCW transceiverIntegrated PLL, transmitter, receiver, baseband and ADC76 to 81GHz coverage with over 4GHz continuous bandwidth4 receive and 3 – 4 transmit channels (AWR2943 with 3 channels and AWR2944 with 4 channels) for PCB interface to antennasPer transmit phase shifterUltra-accurate chirp engine based on fractional-N PLLTX power13.5dBmRX noise figure12dBmPhase noise at 1MHz-96dBc/Hz (76 to 77GHz)-95dBc/Hz (76 to 81GHz)Built-in calibration and self-testBuilt in firmware (ROM)Self-calibrating system across process and temperatureProcessing elementsArm Cortex-R5F core (supports lock step operation) @300MHzTI digital signal processor C66x @360MHz (AWR2944/AWR2943)TI radar hardware accelerator (HWA2.1) for operations like FFT, log magnitude, and memory compression.Multiple EDMA instances for data movementHost interface2x CAN-FD10/100Mbps RGMII/RMII/MII Ethernet (AWR2944/AWR2943)Supports a serial flash memory interface (loading user application from QSPI flash memory)Other interfaces available to user applicationUp to 9 ADC channels2 SPIs4 UARTsI2CGPIOs3 EPWMs4-lane Aurora LVDS interface for raw ADC data and debug instrumentation (AWR2944/AWR2943)CSI2 Rx interface to enable playback of the captured data (AWR2944/AWR2943)On-Chip RAM3 to 4MBytes (AWR2944LC with 3MB, AWR2943 with 3.5MB, and AWR2944 with 4MB)Memory space split between DSP, MCU, and shared L3Device security (on select part numbers)Programmable embedded hardware security module (HSM)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), asymmetric keys (up to RSA-4K or ECC-512) with key revocation capabilityCryptographic hardware accelerators: PKA with ECC, AES (up to 256 bit), SHA (up to 512 bit), TRNG/DRBGFunctional safety compliant targetedDeveloped for functional safety applicationsDocumentation will be available to aid ISO 26262 functional safety system designHardware integrity up to ASIL B targetedAEC-Q100 qualifiedAdvanced featuresEmbedded self-monitoring with no external processor involvementEmbedded interference detection capabilityPower managementOn-die LDO network for enhanced PSRRLVCMOS IO supports dual voltage 3.3V and 1.8VClock source40MHz crystal with internal oscillatorSupports external oscillator at 40MHzSupports externally driven clock (square or sine wave) at 40MHzEffective Power ManagementRecommendedLP87745-Q1 Power Management ICs (PMIC)Companion PMIC specially designed to meet device power supply requirementsFlexible mapping and factory programmed configurations to support different use casesCost-reduced hardware design0.65mm pitch, 12mm × 12mm flip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeSupports automotive temperature operating rangeOperating junction temperature range: –40°C to 140°CFMCW transceiverIntegrated PLL, transmitter, receiver, baseband and ADC76 to 81GHz coverage with over 4GHz continuous bandwidth4 receive and 3 – 4 transmit channels (AWR2943 with 3 channels and AWR2944 with 4 channels) for PCB interface to antennasPer transmit phase shifterUltra-accurate chirp engine based on fractional-N PLLTX power13.5dBmRX noise figure12dBmPhase noise at 1MHz-96dBc/Hz (76 to 77GHz)-95dBc/Hz (76 to 81GHz)Built-in calibration and self-testBuilt in firmware (ROM)Self-calibrating system across process and temperatureProcessing elementsArm Cortex-R5F core (supports lock step operation) @300MHzTI digital signal processor C66x @360MHz (AWR2944/AWR2943)TI radar hardware accelerator (HWA2.1) for operations like FFT, log magnitude, and memory compression.Multiple EDMA instances for data movementHost interface2x CAN-FD10/100Mbps RGMII/RMII/MII Ethernet (AWR2944/AWR2943)Supports a serial flash memory interface (loading user application from QSPI flash memory)Other interfaces available to user applicationUp to 9 ADC channels2 SPIs4 UARTsI2CGPIOs3 EPWMs4-lane Aurora LVDS interface for raw ADC data and debug instrumentation (AWR2944/AWR2943)CSI2 Rx interface to enable playback of the captured data (AWR2944/AWR2943)On-Chip RAM3 to 4MBytes (AWR2944LC with 3MB, AWR2943 with 3.5MB, and AWR2944 with 4MB)Memory space split between DSP, MCU, and shared L3Device security (on select part numbers)Programmable embedded hardware security module (HSM)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), asymmetric keys (up to RSA-4K or ECC-512) with key revocation capabilityCryptographic hardware accelerators: PKA with ECC, AES (up to 256 bit), SHA (up to 512 bit), TRNG/DRBGFunctional safety compliant targetedDeveloped for functional safety applicationsDocumentation will be available to aid ISO 26262 functional safety system designHardware integrity up to ASIL B targetedAEC-Q100 qualifiedAdvanced featuresEmbedded self-monitoring with no external processor involvementEmbedded interference detection capabilityPower managementOn-die LDO network for enhanced PSRRLVCMOS IO supports dual voltage 3.3V and 1.8VClock source40MHz crystal with internal oscillatorSupports external oscillator at 40MHzSupports externally driven clock (square or sine wave) at 40MHzEffective Power ManagementRecommendedLP87745-Q1 Power Management ICs (PMIC)Companion PMIC specially designed to meet device power supply requirementsFlexible mapping and factory programmed configurations to support different use casesCost-reduced hardware design0.65mm pitch, 12mm × 12mm flip chip BGA package for easy assembly and low-cost PCB designSmall solution sizeSupports automotive temperature operating rangeOperating junction temperature range: –40°C to 140°C
Description
AI
The AWR294x is a single-chip mmWave sensor composed of a FMCW transceiver, capable of operation in the 76 to 81GHz band, radar data processing elements, and peripherals for in-vehicle networking. The AWR294x is built with TI’s low-power 45nm RFCMOS process and enables unprecedented levels of integration in a small form factor and minimal BOM. The AWR294x is a device for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
TI’s low-power 45nm RFCMOS process enables a monolithic implementation of a 3-4 TX, 4 RX system with integrated PLL, VCO, mixer, and baseband ADC. Integrated in the DSP subsystem (DSS), is TI’s high-performance C66x DSP for radar signal processing. The device includes a Radio Processor Subsystem (RSS), which is responsible for radar front-end configuration, control, and calibration. Within the Main Subsystem (MSS), the device implements a user-programmable Arm Cortex-R5F processor allowing for custom control and automotive interface applications. The hardware accelerator block (HWA 2.1) supplements the DSS and MSS by offloading common radar processing such as FFT, constant false alarm rate (CFAR), scaling, and compression. This saves MIPS on the DSS and MSS, opening up resources for custom applications and higher-level algorithms.
A Hardware Security Module (HSM) is also provisioned in the device (available for only secure part variants). The HSM consists of a programmable Arm Cortex-M4 core and the necessary infrastructure to provide a secure zone of operation within the device.
Simple programming model changes can enable a wide variety of sensor implementation (Short, Mid, Long) with the possibility of dynamic reconfiguration for implementing a multimode sensor.
Additionally, the AWR294x is provided as a complete platform solution including TI hardware and software reference designs, software drivers, sample configurations, API guides, and user documentation.
