NUF8152 Series

EMI Filter with ESD Protection, LC

Catalog

EMI Filter with ESD Protection, LC

Part	Center / Cutoff Frequency	Technology	Attenuation Value	ESD Protection	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Resistance - Channel (Ohms)	Number of Channels	Package / Case	Values	Height [z]	Height [z]	Filter Order	Grade	Qualification
ON Semiconductor NUF8152MUT2G	125 MHz	RC (Pi)	-25 dB		Low Pass	Surface Mount	85 °C	-40 °C	1.2 mm	3.5 mm	0.138 "	0.047 in	Data Lines for Mobile Devices	28 Ohms	8	16-UFDFN Exposed Pad	1 nH 17 pF 28 Ohms	0.022 in	0.55 mm	3
ON Semiconductor SZNUF8152MUT2G	125 MHz	RC (Pi)	-25 dB		Low Pass	Surface Mount	85 °C	-40 °C	1.2 mm	3.5 mm	0.138 "	0.047 in		28 Ohms	8	16-UFDFN Exposed Pad	1 nH 17 pF 28 Ohms	0.022 in	0.55 mm	3	Automotive	AEC-Q101

Catalog

EMI Filter with ESD Protection, LC

Key Features

• Provides EMI Filtering and ESD Protection

• AECQ101 Qualified and PPAP Capable SZNUF8152

• Compliance with IEC6100042 (Level 4) 13kV (Contact)

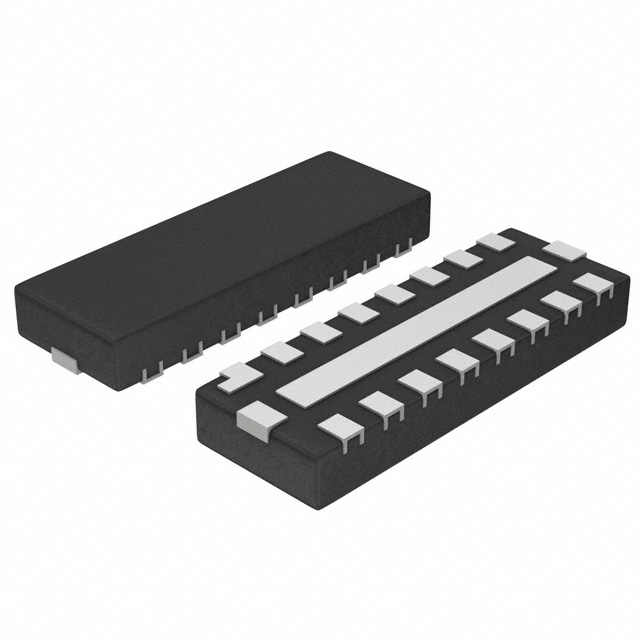

• UDFN16, 1.2 x 3.5 mm Package

• Low Profile, 0.5 mm Height Typical

• 0.4 mm Pitch

• Moisture Sensitivity Level 1

• ESD Ratings: Machine Model = C; Human Body Model = 3B

• Excellent Line Efficiency with Low Line Resistance

• This is a PbFree Device

• Integration of 40 Discretes

Description

NUF8152MU is an 8 line LRC EMI filter array designed for LCD and camera portable applications. It offers superior attenuation at frequencies from 800 MHz to 3.0 GHz and offers ESD protection-clamping transients from static discharges. Housed in a UDFN package, it is specifically designed for low profile or slim-design electronics where space and height are at a premium. ESD protection is provided across all capacitors.
