D1U54-D Series

Catalog

DC/DC CONVERTER 12V 1500W

Part	Approval Agency	Voltage - Output 1	Applications	Voltage - Isolation	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs
Murata Electronics D1U54-D-1500-12-HB3C	CB cCSAus CE	12 V	ITE (Commercial)	1.5 kV	Rack Mount	Front End	-5 °C	45 °C	90 %	1500 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	125 A	-40 V	1
Murata Electronics D1U54-D-450-12-HA4C	CB CCC cCSAus CE TUV	12 V	ITE (Commercial)	1000 V	Rack Mount	Front End	-5 °C	50 °C	93 %	450 W	-72 V	2.15 in	9 in	40 mm	54.5 mm	228.6 mm	1.57 "	37.5 A		1
Murata Electronics D1U54-D-1500-12-HA3C	CB cCSAus CE	12 V	ITE (Commercial)	1.5 kV	Rack Mount	Front End	-5 °C	45 °C	90 %	1500 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	125 A	-40 V	1

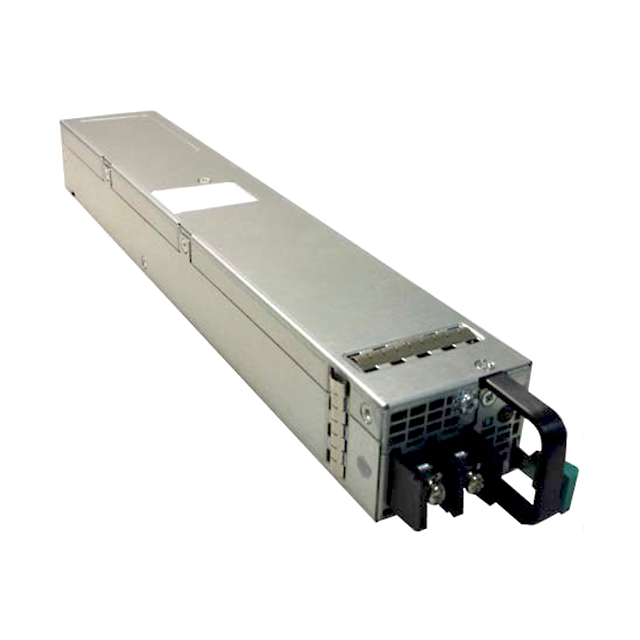

Murata Electronics D1U54-D-1200-12-HA4PC	CB cCSAus CE	12 V	ITE (Commercial)		Rack Mount	Front End			92 %	1200 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	100 A	-40 V	1
Murata Electronics D1U54-D-1200-12-HC3PC	CB cCSAus CE	12 V	ITE (Commercial)		Rack Mount	Front End			92 %	1200 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	100 A	-40 V	1
Murata Electronics D1U54-D-1200-12-HC4PC	CB cCSAus CE	12 V	ITE (Commercial)		Rack Mount	Front End			92 %	1200 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	100 A	-40 V	1
Murata Electronics D1U54-D-1500-12-HC3C	CB cCSAus CE	12 V	ITE (Commercial)	1.5 kV	Rack Mount	Front End	-5 °C	45 °C	90 %	1500 W	-72 V	2.15 in	12.66 "	40 mm	54.5 mm	321.5 mm	1.57 "	125 A	-40 V	1
Murata Electronics D1U54-D-450-12-HB4C	CB cCSAus CE TUV	12 V	ITE (Commercial)		Rack Mount	Front End	-5 °C	50 °C	90 %	450 W	-72 V	2.15 in	9 in	40 mm	54.5 mm	228.6 mm	1.57 "	37.5 A		1

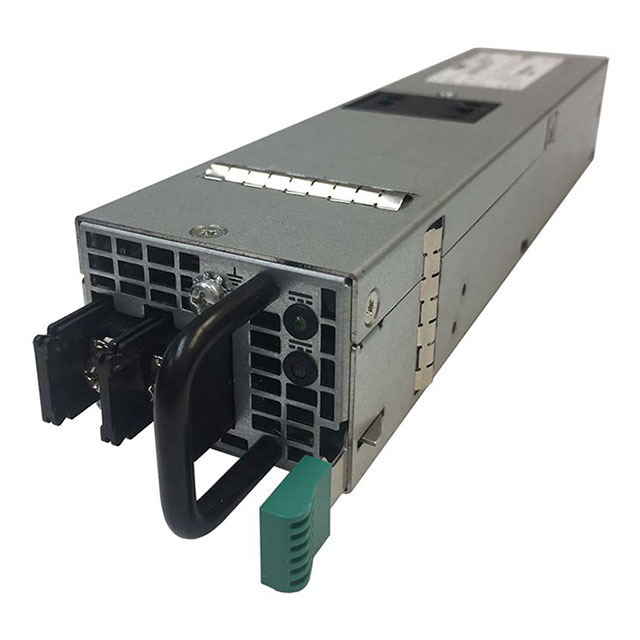

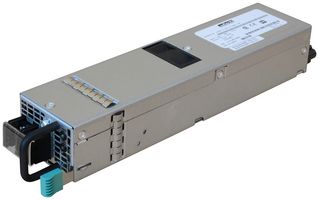

Murata Electronics D1U54-D-650-12-HB4C	CB cCSAus CE TUV	12 V	ITE (Commercial)		Chassis Mount	Front End	-40 C	70 °C	92 %	650 W	-72 V	2.15 in	9 in	40 mm	54.5 mm	228.6 mm	1.57 "	54.2 A		1
